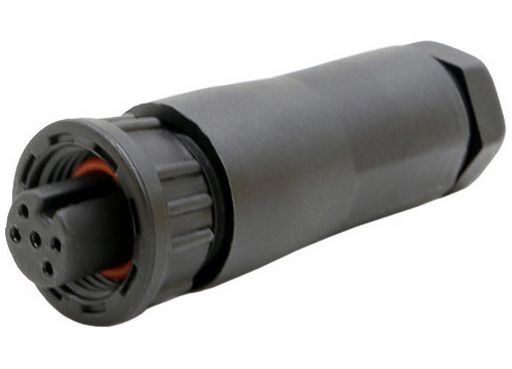

This is a MINI SERIES PLUG SCREW of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MINI SERIES PLUG SCREW
Notes MALE SCREW - FEMALE PINS Mini series waterproof connector with high quality materials to meet different requirements of various environments. Its plastic material used is high performance PA66. Male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Its superior mechanical properties ensure long effective application and good performance with 5 seal structure making its waterproof rating reach IP68 standards.
DescriptionMini series 5pin male plug with socket field installable 180°(screw type)
Size42x14mmØ
Contact5
Mechanical Life500 mating cycles
Cable Range3.5-6.8
Wire Gauge0.34mm²
IPIP68
Operating Temperature-45 ~ +105
Voltage Rating50V
Rated Current2A
Chogori Cat Page29
Cable22AWG
ManufacturerChogori
SKU NoWES_21005211-01_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_21005211-01_1
Brand Chogori
