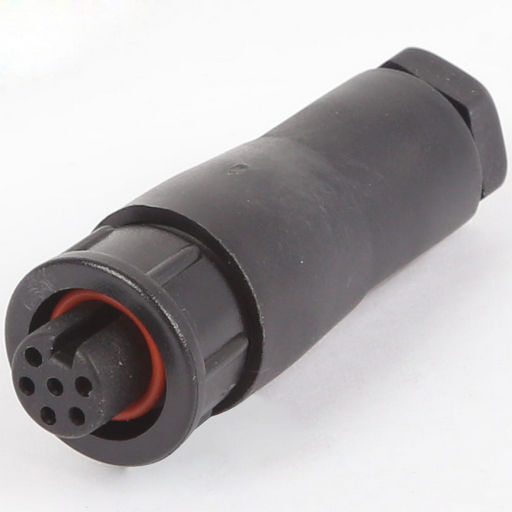

This is a MINI SERIES PLUG BAYONET of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | MINI SERIES PLUG BAYONET |
Notes | MALE BAYONET - FEMALE PINS Mini series waterproof connector manufactured with high performance PA66. Contact is lathed and milled of two solid brass rods, reeds are stamped of beryllium copper with surface gold-plated with 4u”-20u”.Mini series has a good performance with 5 seal structure making its waterproof rating IP68 making it suitable for harsh environments. **Includes molded plug to 2M lead |
Description | Mini series 2+4pin male plug with socket field installable 180°(lock bayonet) |
Contact | 2+4 |
Hole | 10.4mmØ |
Mechanical Life | 500 mating cycles |
Cable Range | 3.5-6.8 |
Wire Gauge | 0.34mm² |
IP | IP67 |
Operating Temperature | -45 ~ +105 |
Voltage Rating | 50V |
Rated Current | 5A+2A |
Chogori Cat Page | 29 |
Cable | 22AWG |
Brand. | Chogori |
Manufacturer | Chogori |
SKU No | WES_21204221-01_1 |
