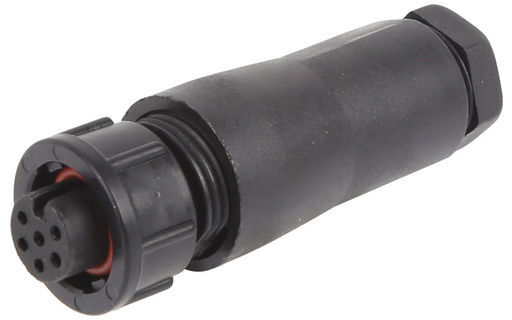

This is a MINI SERIES PLUG BAYONET of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MINI SERIES PLUG BAYONET
Notes MALE BAYONET - FEMALE PINS Mini series waterproof connector manufactured with high performance PA66. Contact is lathed and milled of two solid brass rods, reeds are stamped of beryllium copper with surface gold-plated with 4u”-20u”.Mini series has a good performance with 5 seal structure making its waterproof rating IP68 making it suitable for harsh environments. **Includes molded plug to 2M lead
DescriptionMini series 6pin male plug with socket field installable 180°(lock bayonet)
Contact6
Hole10.4mmØ
Mechanical Life500 mating cycles
Cable Range3.5-6.8
Wire Gauge0.34mm²
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating50V
Rated Current2A
Chogori Cat Page29
Cable22AWG
ManufacturerChogori
SKU NoWES_21006221-01_1
