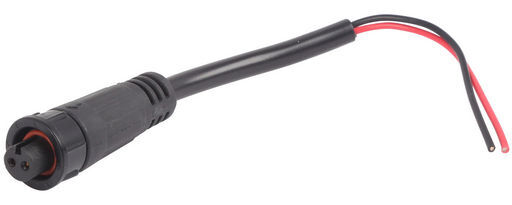

This is a MINI SERIES PLUG BAYONET of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MINI SERIES PLUG BAYONET
Notes MALE BAYONET - FEMALE PINS Mini series waterproof connector manufactured with high performance PA66. Contact is lathed and milled of two solid brass rods, reeds are stamped of beryllium copper with surface gold-plated with 4u”-20u”.Mini series has a good performance with 5 seal structure making its waterproof rating IP68 making it suitable for harsh environments. **Includes molded plug to 2M lead
DescriptionMini series 2pin male plug 180°(lock bayonet) molded with 1.5M lead
Contact2
HoleMolded Plug
Mechanical Life500 mating cycles
Cable RangeIncluded
Wire Gauge0.5mm²
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating110V
Rated Current5A
Length1.5M
Cable20AWG
Brand.Chogori
ManufacturerChogori
SKU NoWES_1IC03321011901_1
