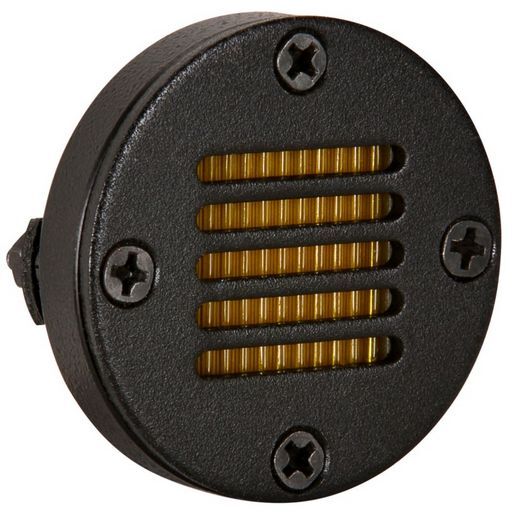

MINI AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO
STANDARD 40MM FACE PLATE - OPTIONAL 57MM FACE PLATE
SKU code: WES_AMTMINI-8_1
This is a MINI AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MINI AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO |
| Notes | STANDARD 40MM FACE PLATE - OPTIONAL 57MM FACE PLATE Dayton Audio's AMT Mini-8 Air Motion Transformer tweeter adds clarity, transient speed, and musical finesse to almost any loudspeaker design. The AMT Mini-8's compact housing is easy to mount anywhere, and ground-breaking AMT technology enables high output from this tiny driver.The Dayton Audio AMT Mini-8 model features a round housing and compact AMT element, for wide dispersion that easily replaces dome tweeters in retrofit or new design applications. The AMT Mini-8 is small enough to be used in compact satellite speakers, or installed in the center of a mid-woofer to create a full-bandwidth coaxial driver, or implemented in other ways, including line arrays. The sealed rear chamber design of the AMT Mini-8 eliminates the need for a separate internal chamber in the loudspeaker enclosure. Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.Robust metal faceplate provides secure, stable mountingPowerful, lightweight neodymium magnet structure for low distortion and high efficiencyWide bandwidth facilitates integration with large midwoofers25 watt RMS power handling Note: This tweeter was designed for press-fit mounting, but now includes a 2.25 diameter faceplate for front baffle mounting. |
| Description | AIR MOTION TRANSFORMER TWEETER |
| Type | AMT |
| Power | 15W |
| Coil | AMT |
| Impedance | 8Ω (Re 7.92Ω) |
| Depth | 23mm |
| Sens. | 88dB |
| Re | 7.92Ω |
| Qms | 1.86 |
| Qes | N/A |
| Qts | 1.84 |
| Vas | N/A |
| Sd | 3.8cm² |
| Cms | N/A |
| Mms | N/A |
| Zn | 8Ω |
| Diam. | 40.5mmØ |
| Manufacturer | Dayton Audio |
| Prms | 15W |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Series | AMT |
| QTY | 1 |
| Inch | 1.5 |
| Size | 1.5' |
| Price Type | each |
| SKU No | WES_AMTMINI-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_AMTMINI-8_1 |
| Brand | Dayton Audio |
