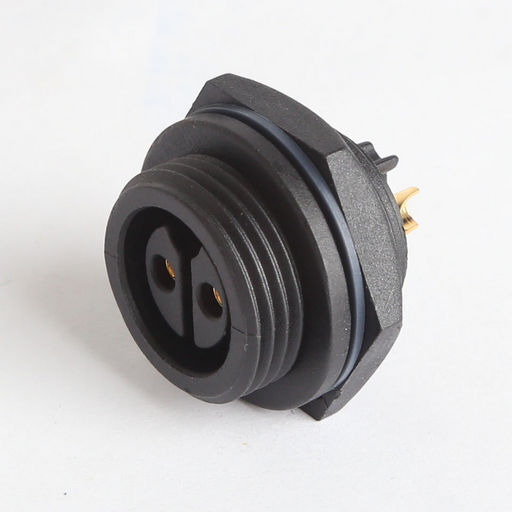

MIDDLE SERIES SOCKET SCREW (BACK)
FEMALE SCREW TYPE REAR PANEL MOUNT - FEMALE PINS
SKU code: WES_23002615-03_1
This is a MIDDLE SERIES SOCKET SCREW (BACK) of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES SOCKET SCREW (BACK) |
| Notes | FEMALE SCREW TYPE REAR PANEL MOUNT - FEMALE PINS Mounting screw is attached to the back of the chassis panel. Middle connector has superior quality to ensure a reliable connection. These products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, copper needles used have the excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Waterproof rating can reach IP68 standards, thus it is ideal for harsh working environments. Cap to suit 806-00021-00 |
| Description | Middle series 2pin rear panel mount with socket(screw type) |
| Cable | 14AWG |
| Contact | 2 |
| Hole | 20mmØ |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 2.5mm² |
| Panel Thickness | Max. 4.0mm |
| IP | IP68 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A |
| Chogori Cat Page | 68 |
| Manufacturer | Chogori |
| SKU No | WES_23002615-03_1 |
