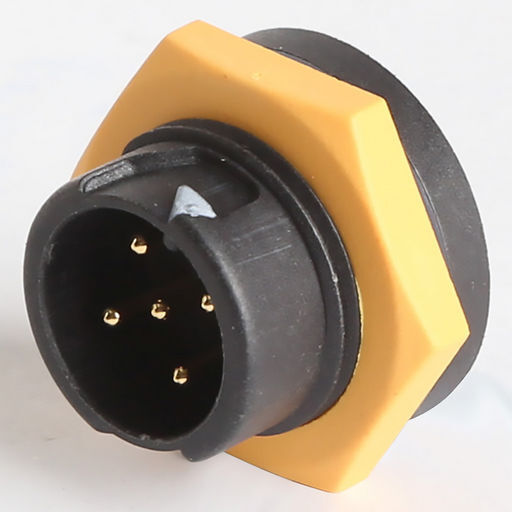

MIDDLE SERIES SOCKET (R) PUSH-LOCK
FEMALE PUSH LOCK - MALE PINS
SKU code: WES_23005535-01_1
This is a MIDDLE SERIES SOCKET (R) PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES SOCKET (R) PUSH-LOCK |
| Notes | FEMALE PUSH LOCK - MALE PINS Reversed pins for input signal, power or control configurations.Simple push to lock plug insertion, then twist and pull to release.Mounting screw is attached to the front of the chassis panel. This high-quality connector can self-locking when they plug into its mate ,making insertion and extraction simply and quickly, so industrial machinery input and output devices can be quickly and easily replaced. All the Middle products are manufactured with high quality materials to meet the various requirements of different environments, copper needles used are phosphor bronze with low corrosion brass plating. |
| Description | Middle series 5pin front panel mount with pin(push lock) |
| Cable | 18AWG |
| Contact | 5 |
| Hole | 20mmØ |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 0.75mm² |
| Panel Thickness | Max 4.0mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 125V |
| Rated Current | 10A |
| Chogori Cat Page | 59 |
| Manufacturer | Chogori |
| SKU No | WES_23005535-01_1 |
