MIDDLE SERIES SOCKET (R) PUSH-LOCK
MIDDLE SERIES SOCKET (R) PUSH-LOCK
SKU code: WES_23004535-03_1

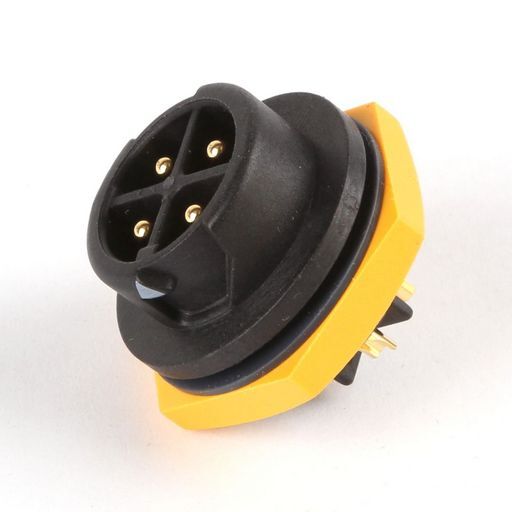

This is a MIDDLE SERIES SOCKET (R) PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | MIDDLE SERIES SOCKET (R) PUSH-LOCK |
Notes | SCREW WORKS ON INSIDE PANNEL ACCESS |
Description | Middle series 4pin front panel mount with pin(push lock) |
Cable | 17AWG |
Contact | 4 |
Hole | 20mmØ |
IP | IP67 |
Mechanical Life | 500 mating cycles |
Operating Temperature | -45 ~ +105 |
Panel Thickness | Max 4.0mm |
Rated Current | 15A |
Voltage Rating | 300V |
Wire Gauge | 1.0mm² |
Manufacturer | Chogori |
Brand. | Chogori |
SKU No | WES_23004535-03_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
