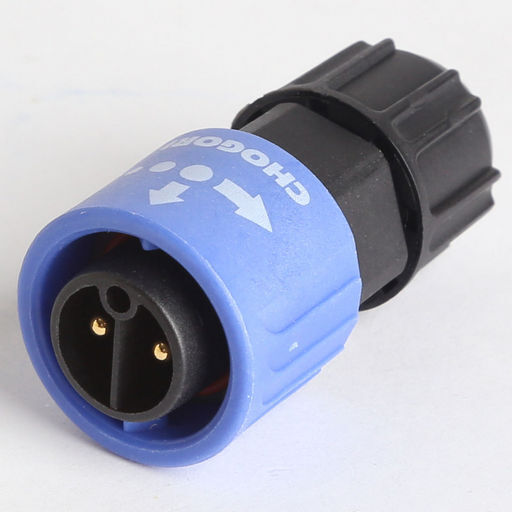

MIDDLE SERIES PLUG PUSH-LOCK
MALE PUSH LOCK - MALE PINS
SKU code: WES_23002131-02_1
This is a MIDDLE SERIES PLUG PUSH-LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES PLUG PUSH-LOCK |
| Notes | MALE PUSH LOCK - MALE PINS Simple push to lock plug insertion, then twist and pull to release.The mounting screw is attached to the front of the chassis panel.Middle connector is designed to apply in harsh industrial and climatic environment, its superior quality can ensure a reliable connection. This high-quality connector is self-locking when plugged into its mate, making insertion and extraction simple and quick. The plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. |
| Description | Middle series 2pin male plug with pin field installable(push lock) |
| Size | 45x24mmØ |
| Cable | 14AWG |
| Contact | 2 |
| Mechanical Life | 500 mating cycles |
| Cable Range | 6.5-9.5 |
| Wire Gauge | 2.5mm² |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A |
| Chogori Cat Page | 69 |
| Manufacturer | Chogori |
| SKU No | WES_23002131-02_1 |
