This is a MIDDLE SERIES INLINE SOCKET PUSH-LOCK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

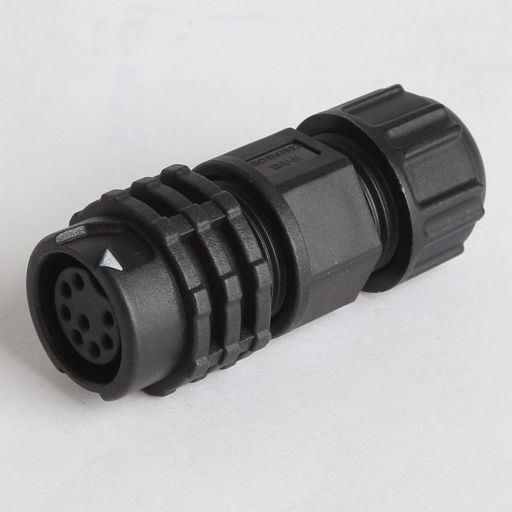

Title MIDDLE SERIES INLINE SOCKET PUSH-LOCK
Notes FEMALE PUSH LOCK - FEMALE SOCKET In-line socket solution with push to lock action for cable extension. This high-quality connector can self-locking when they plug into its mate ,making insertion and extraction quick so other industrial machinery input and output devices can be easily replaced. All the Middle products are manufactured with high quality materials, the plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The connector can insert and extract up to 3000 times or more.
DescriptionMiddle series 8pin female plug with socket field installable(push lock)
Size50x23mmØ
Cable22AWG
Contact8
Mechanical Life500 mating cycles
Cable Range6.5-9.5
Wire Gauge0.34mm²
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating60V
Rated Current5A
Chogori Cat Page74
ManufacturerChogori
SKU NoWES_23008431-02_1
