This is a MIDDLE SERIES INLINE PLUG LOCK BAYONET of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MIDDLE SERIES INLINE PLUG LOCK BAYONET
Notes In-line socket solution with lock bayonet mechanism for cable extension. This high-quality connector can self-locking when they plug into its mate ,making insertion and extraction quick so other industrial machinery input and output devices can be easily replaced. All the Middle products are manufactured with high quality materials, the plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. The connector can insert and extract up to 3000 times or more.
DescriptionMiddle series 2pin male plug with socket field installable (lock bayonet type)
Cable14AWG
Cable Range3.5-6.5
Chogori Cat Page57
Contact2
IPIP68
Mechanical Life500 mating cycles
Operating Temperature-45 ~ +105
Rated Current20A

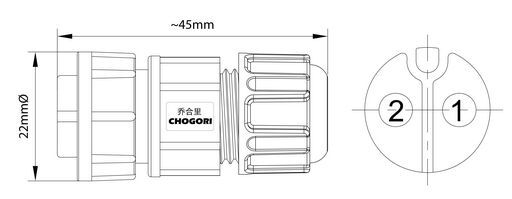

Size45x24mmØ
Voltage Rating300V
Wire Gauge2.5mm²
Brand.Chogori
ManufacturerChogori
SKU NoWES_23002221-01_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_23002221-01_1
Brand Chogori
