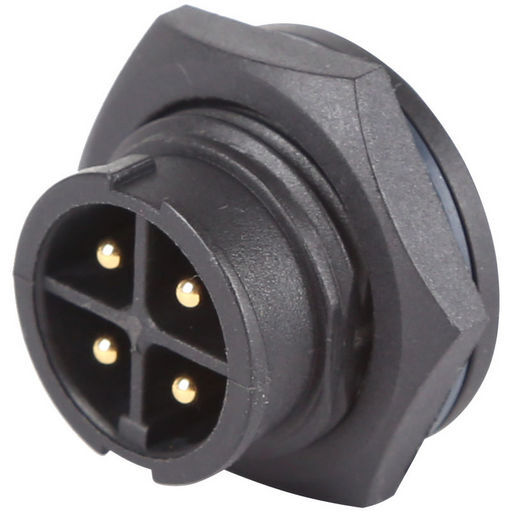

MIDDLE SERIES FRONT PANEL MOUNT LOCK BAYONET
MALE PINS
SKU code: WES_23004525-01_1
This is a MIDDLE SERIES FRONT PANEL MOUNT LOCK BAYONET of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MIDDLE SERIES FRONT PANEL MOUNT LOCK BAYONET |
| Notes | MALE PINS Middle Series Front Panel Mount with Male Pins. Lock bayonet type locking. Solder type. All the Middle series products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, copper needles used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Middle type connector has a good performance in waterproofing, can reach IP68 standards, thus it is ideal for indoor and outdoor harsh working environments. The connector can insert / extract 3000 times or more. |
| Description | Middle series 4pin front panel mount with pin (lock bayonet), Solder |
| Cable | 17AWG |
| Chogori Cat Page | 53 |
| Contact | 4 |
| Hole | 19.2mmØ |
| IP | IP68 |
| Mechanical Life | 500 mating cycles |
| Operating Temperature | -45 ~ +105 |
| Panel Thickness | Max 4.0mm |
| Rated Current | 15A |
| Voltage Rating | 300V |
| Wire Gauge | 1.03mm² |
| Manufacturer | Chogori |
| SKU No | WES_23004525-01_1 |
