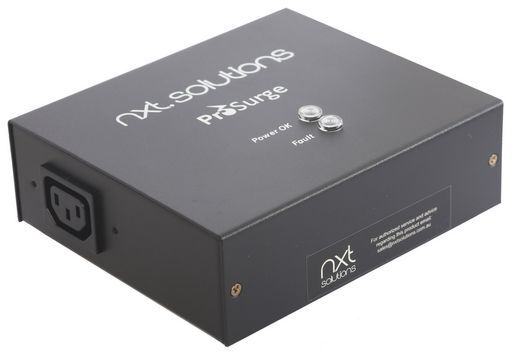

MAINS POWER SURGE FILTER IEC
IEC INPUT/OUTPUT 40KA
SKU code: WES_BSF40-10A_2
This is a MAINS POWER SURGE FILTER IEC of brand Prolink.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | MAINS POWER SURGE FILTER IEC |
| Notes | IEC INPUT/OUTPUT 40KA The BSF40 series portable filters are designed to provide a secondary protection to critical circuits in medium risk locations and can be used in conjunction with secondary surge protection devices (SPD). This device is particularly suitable for use with plug in UPS systems, servers, instrumentation. POS systems, specialised industrial and commercial portable equipment where a high degree of protection is required on mission critical applications in harsh electrical environments. This device is not intended for general domestic use. These models are designed to connect in series with the power system as close as possible to the device to be protected. Excess voltage transients are diverted to Neutral and Earth and thus limiting the damage to the downstream load. Once the spike is over, the unit will return back to normal operation.Surge protection and EMI/RFI filter40kA Imax in L-N mode. 10kA in other modes3 stage, 3 mode protectionLC filter networkRugged IP24 enclosure10A and 16A versionsIEC input/output2 part display Industrial \Commercial Use Only |
| Size | 152x133x55mm |
| Imax | 40kA (L-N mode), 10kA (other modes) |
| Current | 10A |
| Weight | 0.8kg |
| Connectors | IEC C13/C14 |
| Mode | 40kA (L-N mode), 60kA (all modes) |
| IP | IP24 |
| Manufacturer | Prolink |
| SKU No | WES_BSF40-10A_2 |
