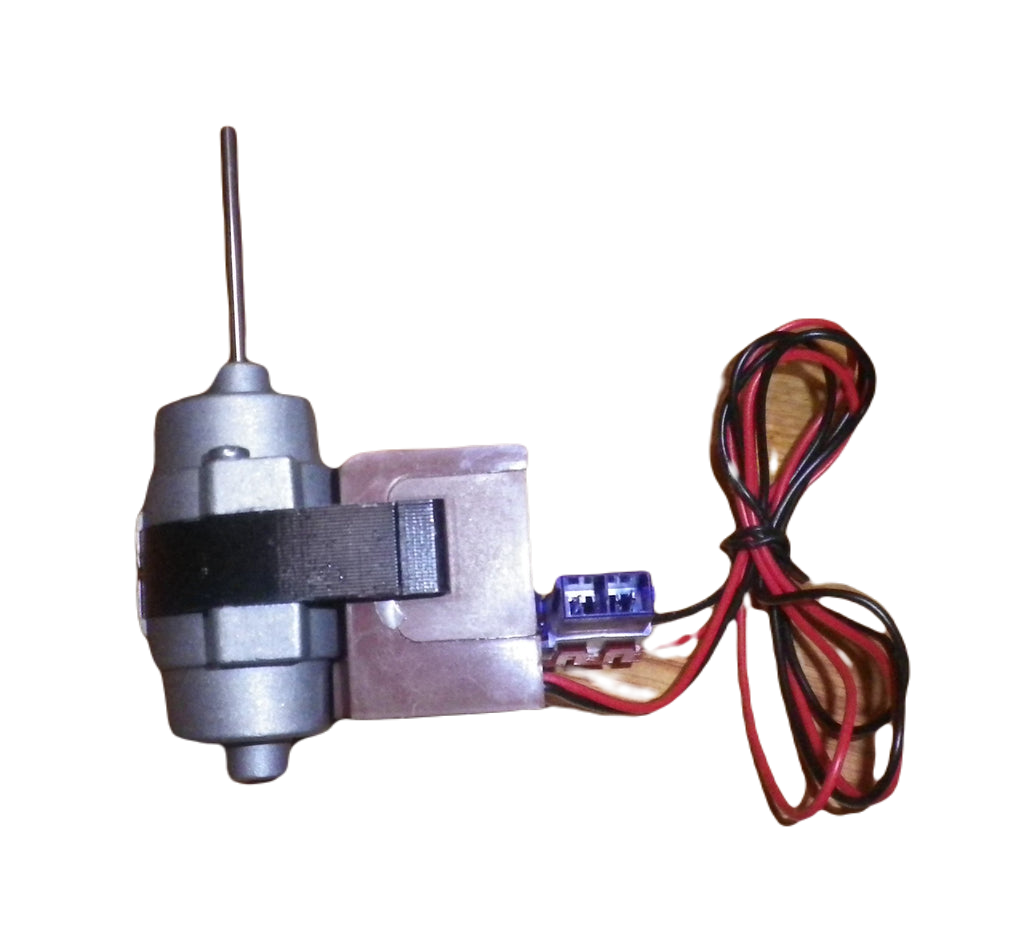

This is a replacement Low Voltage Evaporator Fan Motor. It is suitable for replacing spare parts with SEIOM100 part number for NEC Fridges and Freezers.

SALIN is a leading Australian appliance spare parts distributor specializing in NEC applicances. We take pride in our ability to bring hard-to-find NEC spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our NEC range is genuine.

TECHNICAL SHEET
Part NoSEIOM100
NotesLow Voltage Evaporator Fan Motor to suit some NEC & Daewoo No Frost Fridges.Part No. SEIOM100.Other numbers on motor - D4612AAA21.Suitable replacement for RF948, 3015915900, D4612AAA20, Bosch 00601067, 601067, Baumatic 07040440.Small fan motor suitable for some Daewoo electronic frost free refrigerators. Also fits many other models from Smeg, Bosch, NEC & other brands made by Daewoo.Low voltage operation. Fitted with 2 way power connector.13volt, 3.3watt, 0.233amp, 2050rpm.Shaft length 39mm, shaft diameter 3.1mm, total depth 100.3mm from tip of shaft to back of fan body, thickness of motor from front to back is 49.6mm. Fits the following models:-Baumatic:Titan 1, Titan 2Bosch:B20CS50SNB/01, B20CS51SNI/01, B20CS80SNW/01, KAN56V10AU/03, B20CS50SNB/02, B20CS51SNI/02, B20CS80SNW/02, KAN56V10AU/04, B20CS50SNI/01, B20CS51SNS/01, B20CS81SNB/01, KAN56V10AU/05, B20CS50SNI/02, B20CS51SNS/02, B20CS81SNB/02, KAN56V10NE/01, B20CS50SNS/01, B20CS51SNW/01, B20CS81SNS/01, KAN56V10NE/02, B20CS50SNS/02, B20CS51SNW/02, B20CS81SNS/02, KAN56V10NE/03, B20CS50SNW/01, B20CS80SNB/01, B20CS81SNW/01, KAN56V10NE/04, B20CS50SNW/02, B20CS80SNB/02, B20CS81SNW/02, KAN56V10NE/05, B20CS51SNB/01, B20CS80SNS/01, KAN56V10AU/01, KAN56V10SA/01, B20CS51SNB/02, B20CS80SNS/02, KAN56V10AU/02, KAN56V10SA/02, KAN56V10TI/01, KAN56V40AU/02, KAN56V50/05, KAN58A10/07, KAN56V10TI/02, KAN56V40AU/03, KAN56V50/06, KAN58A10/08, KAN56V10TI/03, KAN56V40AU/04, KAN56V50/07, KAN58A10/09, KAN56V10TI/04, KAN56V40AU/05, KAN56V50/08, KAN58A10/10, KAN56V10TI/05, KAN56V40SA/01, KAN58A10/01, KAN58A10GB/01, KAN56V10TI/06, KAN56V40SA/02, KAN58A10/02, KAN58A40/01, KAN56V10TI/07, KAN56V50/01, KAN58A10/03, KAN58A40/02, KAN56V10TI/08, KAN56V50/02, KAN58A10/04, KAN58A40/03, KAN56V10TI/09, KAN56V50/03, KAN58A10/05, KAN58A40/04, KAN56V40AU/01, KAN56V50/04, KAN58A10/06, KAN58A40/05, KAN58A40/06, KAN58A40AU/06, KAN58A40GB/08, KAN58A50/05, KAN58A40/07, KAN58A40AU/07, KAN58A40GB/09, KAN58A50/06, KAN58A40/08, KAN58A40AU/08, KAN58A40GB/10, KAN58A50/07, KAN58A40/09, KAN58A40GB/01, KAN58A40J/01, KAN58A50/08, KAN58A40/10, KAN58A40GB/02, KAN58A40J/02, KAN58A50/09, KAN58A40AU/01, KAN58A40GB/03, KAN58A40J/03, KAN58A50/10, KAN58A40AU/02, KAN58A40GB/04, KAN58A50/01, KAN58A50GB/01, KAN58A40AU/03, KAN58A40GB/05, KAN58A50/02, KAN58A50GB/02, KAN58A40AU/04, KAN58A40GB/06, KAN58A50/03, KAN58A50GB/06, KAN58A40AU/05, KAN58A40GB/07, KAN58A50/04, KAN58A50GB/07, KAN58A50GB/08, KAN58A50TI/02, KAN58A70AU/03, KAN58A70NE/06, KAN58A50GB/09, KAN58A70/05, KAN58A70AU/04, KAN58A70NE/07, KAN58A50GB/10, KAN58A70/06, KAN58A70AU/05, KAN58P90/01, KAN58A50NE/01, KAN58A70/07, KAN58A70AU/07, KAN58P90/02, KAN58A50NE/02, KAN58A70/08, KAN58A70AU/08, KAN58P90/03, KAN58A50NE/03, KAN58A70/09, KAN58A70NE/01, KAN58P90/04, KAN58A50NE/04, KAN58A70/10, KAN58A70NE/02, KAN58P90/05, KAN58A50NE/05, KAN58A70/11, KAN58A70NE/03, KAN58P90/06, KAN58A50NE/06, KAN58A70AU/01, KAN58A70NE/04, KAN58P90/07, KAN58A50TI/01, KAN58A70AU/02, KAN58A70NE/05, KAN58P90/08, KAN58P90/09, KAN60A40/01, KAN60A40AU/01, KAN60A40TI/01, KAN58P90/10, KAN60A40/02, KAN60A40AU/02, KAN60A40TI/02, KAN58P95/01, KAN60A40/03, KAN60A40J/01, KAN60A40TI/03, KAN58P95/02, KAN60A40/04, KAN60A40J/02, KAN60A40TI/04, KAN58P95/03, KAN60A40/05, KAN60A40J/03, KAN60A40TI/05, KAN58P95/04, KAN60A40/06, KAN60A40NE/01, KAN60A40TI/06, KAN60A15NE/01, KAN60A40/07, KAN60A40NE/02, KAN60A40TI/07, KAN60A15NE/02, KAN60A40/08, KAN60A40NE/03, KAN60A40TI/08, KAN60A15NE/03, KAN60A40/09, KAN60A40NE/04, KAN60A41K/01, KAN60A15NE/04, KAN60A40/10, KAN60A40NE/05, KAN60A41K/02, KAN60A41K/03, KAN61A40TI/06, KAN61A40TI/08, KAN61A40TI/01, KAN61A40TI/07, KAN61A40TI/09Daewoo:FRN-U20BC, FRN-U20DC, FRN-U20FC, FRN-U20IC, FRS-U20BC, FRS-U20DAI, FRS-U20DC, FRS-U20DCB, FRS-U20IAI, FRS-U20ICW, DRS30DSMB, FRAU20DCBNeff:K3940X6/01, K3950X6GB/06, K3990X6/01, K3990X6GB/04, K3940X6/02, K3950X6GB/07, K3990X6/02, K3990X6GB/05, K3940X6/03, K3970X6/01, K3990X6/03, K3990X6GB/06, K3940X6/04, K3970X6/02, K3990X6/04, K3990X7/01, K3940X6GB/01, K3970X6/03, K3990X6/05, K3990X7/02, K3940X6GB/05, K3970X6/04, K3990X6/06, K3990X7/03, K3940X6GB/06, K3970X6/05, K3990X6/07, K3990X7/04, K3940X6GB/07, K3970X6/06, K3990X6GB/01, K3990X7GB/01, K3950X6GB/01, K3970X6/07, K3990X6GB/02, K3950X6GB/05, K3970X6/08, K3990X6GB/03Siemens:KA58NA40GB/01, KA58NA40GB/07, KA58NA50GB/07, KA58NP90GB/07, KA58NA40GB/06, KA58NA50GB/01, KA58NP90GB/05NEC:FR480, NTM470RWH, NTM510RWH, NTM470RWHOmega:FRS645S, FRR616S, FRR721S, FRS645S, FRW616S
TitleLow Voltage Evaporator Fan Motor For NEC FRR616S Fridges and Freezers
CategoryAppliance Spares > Kitchen Appliances > Fridges & Freezers
Replacement ItemLow Voltage Evaporator Fan Motor
Compatible Brands✔ Smeg
✔ Bosch
✔ Daewoo
✔ NEC
Replacing Parts✔ D4612AAA21
Suitable Models✔  NEC RF948
✔  NEC 3015915900
✔  NEC D4612AAA20
✔  NEC 00601067
✔  NEC 601067
✔  NEC 07040440
✔  NEC B20CS50SNB/01
✔  NEC B20CS51SNI/01
✔  NEC B20CS80SNW/01
✔  NEC KAN56V10AU/03
✔  NEC B20CS50SNB/02
✔  NEC B20CS51SNI/02
✔  NEC B20CS80SNW/02
✔  NEC KAN56V10AU/04
✔  NEC B20CS50SNI/01
✔  NEC B20CS51SNS/01
✔  NEC B20CS81SNB/01
✔  NEC KAN56V10AU/05
✔  NEC B20CS50SNI/02
✔  NEC B20CS51SNS/02
✔  NEC B20CS81SNB/02
✔  NEC KAN56V10NE/01
✔  NEC B20CS50SNS/01
✔  NEC B20CS51SNW/01
✔  NEC B20CS81SNS/01
✔  NEC KAN56V10NE/02
✔  NEC B20CS50SNS/02
✔  NEC B20CS51SNW/02
✔  NEC B20CS81SNS/02
✔  NEC KAN56V10NE/03
✔  NEC B20CS50SNW/01
✔  NEC B20CS80SNB/01
✔  NEC B20CS81SNW/01
✔  NEC KAN56V10NE/04
✔  NEC B20CS50SNW/02
✔  NEC B20CS80SNB/02
✔  NEC B20CS81SNW/02
✔  NEC KAN56V10NE/05
✔  NEC B20CS51SNB/01
✔  NEC B20CS80SNS/01
✔  NEC KAN56V10AU/01
✔  NEC KAN56V10SA/01
✔  NEC B20CS51SNB/02
✔  NEC B20CS80SNS/02
✔  NEC KAN56V10AU/02
✔  NEC KAN56V10SA/02
✔  NEC KAN56V10TI/01
✔  NEC KAN56V40AU/02
✔  NEC KAN56V50/05
✔  NEC KAN58A10/07
SKU NumberFIT_0002862_004_00273
