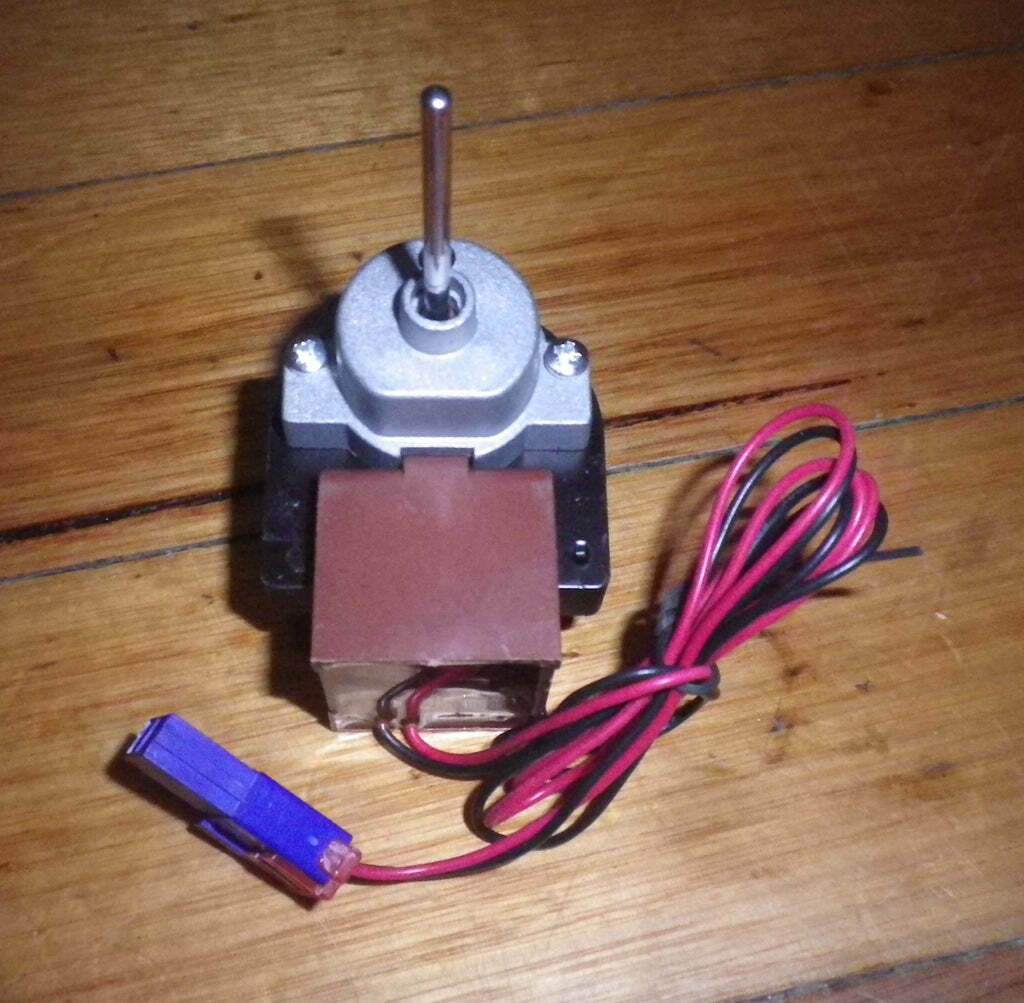

This is a replacement Low Voltage Evaporator Fan Motor. It is suitable for replacing spare parts with D4612AAA21 part number for NEC Fridges and Freezers.

SALIN is a leading Australian appliance spare parts distributor specializing in NEC applicances. We take pride in our ability to bring hard-to-find NEC spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our NEC range is genuine.

TECHNICAL SHEET
Part NoD4612AAA21
NotesLow Voltage Evaporator Fan Motor to suit some NEC & Daewoo No Frost Fridges.Part No. D4612AAA21, 3015915900, RF948.Other numbers on motor - 85143, 5X15.Suitable replacement for 3015915900, D4612AAA20, SEIOM100, Bosch 00601067, 601067, Baumatic 07040440.Small fan motor suitable for some Daewoo electronic frost free refrigerators. Also fits many other models from Smeg, Bosch, NEC & other brands made by Daewoo.Low voltage operation. Fitted with 2 way power connector.13volt, 3.3watt, 0.233amp, 2050rpm.Shaft length 39mm, shaft diameter 3.1mm, total depth 100.3mm from tip of shaft to back of fan body, thickness of motor from front to back is 49.6mm. Fits the following models:-Baumatic:Titan 1, Titan 2Bosch:B20CS50SNB/01, B20CS51SNI/01, B20CS80SNW/01, KAN56V10AU/03, B20CS50SNB/02, B20CS51SNI/02, B20CS80SNW/02, KAN56V10AU/04, B20CS50SNI/01, B20CS51SNS/01, B20CS81SNB/01, KAN56V10AU/05, B20CS50SNI/02, B20CS51SNS/02, B20CS81SNB/02, KAN56V10NE/01, B20CS50SNS/01, B20CS51SNW/01, B20CS81SNS/01, KAN56V10NE/02, B20CS50SNS/02, B20CS51SNW/02, B20CS81SNS/02, KAN56V10NE/03, B20CS50SNW/01, B20CS80SNB/01, B20CS81SNW/01, KAN56V10NE/04, B20CS50SNW/02, B20CS80SNB/02, B20CS81SNW/02, KAN56V10NE/05, B20CS51SNB/01, B20CS80SNS/01, KAN56V10AU/01, KAN56V10SA/01, B20CS51SNB/02, B20CS80SNS/02, KAN56V10AU/02, KAN56V10SA/02, KAN56V10TI/01, KAN56V40AU/02, KAN56V50/05, KAN58A10/07, KAN56V10TI/02, KAN56V40AU/03, KAN56V50/06, KAN58A10/08, KAN56V10TI/03, KAN56V40AU/04, KAN56V50/07, KAN58A10/09, KAN56V10TI/04, KAN56V40AU/05, KAN56V50/08, KAN58A10/10, KAN56V10TI/05, KAN56V40SA/01, KAN58A10/01, KAN58A10GB/01, KAN56V10TI/06, KAN56V40SA/02, KAN58A10/02, KAN58A40/01, KAN56V10TI/07, KAN56V50/01, KAN58A10/03, KAN58A40/02, KAN56V10TI/08, KAN56V50/02, KAN58A10/04, KAN58A40/03, KAN56V10TI/09, KAN56V50/03, KAN58A10/05, KAN58A40/04, KAN56V40AU/01, KAN56V50/04, KAN58A10/06, KAN58A40/05, KAN58A40/06, KAN58A40AU/06, KAN58A40GB/08, KAN58A50/05, KAN58A40/07, KAN58A40AU/07, KAN58A40GB/09, KAN58A50/06, KAN58A40/08, KAN58A40AU/08, KAN58A40GB/10, KAN58A50/07, KAN58A40/09, KAN58A40GB/01, KAN58A40J/01, KAN58A50/08, KAN58A40/10, KAN58A40GB/02, KAN58A40J/02, KAN58A50/09, KAN58A40AU/01, KAN58A40GB/03, KAN58A40J/03, KAN58A50/10, KAN58A40AU/02, KAN58A40GB/04, KAN58A50/01, KAN58A50GB/01, KAN58A40AU/03, KAN58A40GB/05, KAN58A50/02, KAN58A50GB/02, KAN58A40AU/04, KAN58A40GB/06, KAN58A50/03, KAN58A50GB/06, KAN58A40AU/05, KAN58A40GB/07, KAN58A50/04, KAN58A50GB/07, KAN58A50GB/08, KAN58A50TI/02, KAN58A70AU/03, KAN58A70NE/06, KAN58A50GB/09, KAN58A70/05, KAN58A70AU/04, KAN58A70NE/07, KAN58A50GB/10, KAN58A70/06, KAN58A70AU/05, KAN58P90/01, KAN58A50NE/01, KAN58A70/07, KAN58A70AU/07, KAN58P90/02, KAN58A50NE/02, KAN58A70/08, KAN58A70AU/08, KAN58P90/03, KAN58A50NE/03, KAN58A70/09, KAN58A70NE/01, KAN58P90/04, KAN58A50NE/04, KAN58A70/10, KAN58A70NE/02, KAN58P90/05, KAN58A50NE/05, KAN58A70/11, KAN58A70NE/03, KAN58P90/06, KAN58A50NE/06, KAN58A70AU/01, KAN58A70NE/04, KAN58P90/07, KAN58A50TI/01, KAN58A70AU/02, KAN58A70NE/05, KAN58P90/08, KAN58P90/09, KAN60A40/01, KAN60A40AU/01, KAN60A40TI/01, KAN58P90/10, KAN60A40/02, KAN60A40AU/02, KAN60A40TI/02, KAN58P95/01, KAN60A40/03, KAN60A40J/01, KAN60A40TI/03, KAN58P95/02, KAN60A40/04, KAN60A40J/02, KAN60A40TI/04, KAN58P95/03, KAN60A40/05, KAN60A40J/03, KAN60A40TI/05, KAN58P95/04, KAN60A40/06, KAN60A40NE/01, KAN60A40TI/06, KAN60A15NE/01, KAN60A40/07, KAN60A40NE/02, KAN60A40TI/07, KAN60A15NE/02, KAN60A40/08, KAN60A40NE/03, KAN60A40TI/08, KAN60A15NE/03, KAN60A40/09, KAN60A40NE/04, KAN60A41K/01, KAN60A15NE/04, KAN60A40/10, KAN60A40NE/05, KAN60A41K/02, KAN60A41K/03, KAN61A40TI/06, KAN61A40TI/08, KAN61A40TI/01, KAN61A40TI/07, KAN61A40TI/09Daewoo:FRN-U20BC, FRN-U20DC, FRN-U20FC, FRN-U20IC, FRS-U20BC, FRS-U20DAI, FRS-U20DC, FRS-U20DCB, FRS-U20IAI, FRS-U20ICW, DRS30DSMB, FRAU20DCBNeff:K3940X6/01, K3950X6GB/06, K3990X6/01, K3990X6GB/04, K3940X6/02, K3950X6GB/07, K3990X6/02, K3990X6GB/05, K3940X6/03, K3970X6/01, K3990X6/03, K3990X6GB/06, K3940X6/04, K3970X6/02, K3990X6/04, K3990X7/01, K3940X6GB/01, K3970X6/03, K3990X6/05, K3990X7/02, K3940X6GB/05, K3970X6/04, K3990X6/06, K3990X7/03, K3940X6GB/06, K3970X6/05, K3990X6/07, K3990X7/04, K3940X6GB/07, K3970X6/06, K3990X6GB/01, K3990X7GB/01, K3950X6GB/01, K3970X6/07, K3990X6GB/02, K3950X6GB/05, K3970X6/08, K3990X6GB/03Siemens:KA58NA40GB/01, KA58NA40GB/07, KA58NA50GB/07, KA58NP90GB/07, KA58NA40GB/06, KA58NA50GB/01, KA58NP90GB/05NEC:FR480, NTM470RWH, NTM510RWH, NTM470RWHOmega:FRS645S, FRR616S, FRR721S, FRS645S, FRW616S
TitleLow Voltage Evaporator Fan Motor For NEC B20CS51SNW/01 Fridges and Freezers
CategoryAppliance Spares > Kitchen Appliances > Fridges & Freezers
Replacement ItemLow Voltage Evaporator Fan Motor
Compatible Brands✔ Smeg
✔ Bosch
✔ Daewoo
✔ NEC
Replacing Parts✔ 85143
✔ 5X15
Suitable Models✔  NEC 3015915900
✔  NEC D4612AAA20
✔  NEC SEIOM100
✔  NEC 00601067
✔  NEC 601067
✔  NEC 07040440
✔  NEC B20CS50SNB/01
✔  NEC B20CS51SNI/01
✔  NEC B20CS80SNW/01
✔  NEC KAN56V10AU/03
✔  NEC B20CS50SNB/02
✔  NEC B20CS51SNI/02
✔  NEC B20CS80SNW/02
✔  NEC KAN56V10AU/04
✔  NEC B20CS50SNI/01
✔  NEC B20CS51SNS/01
✔  NEC B20CS81SNB/01
✔  NEC KAN56V10AU/05
✔  NEC B20CS50SNI/02
✔  NEC B20CS51SNS/02
✔  NEC B20CS81SNB/02
✔  NEC KAN56V10NE/01
✔  NEC B20CS50SNS/01
✔  NEC B20CS51SNW/01
✔  NEC B20CS81SNS/01
✔  NEC KAN56V10NE/02
✔  NEC B20CS50SNS/02
✔  NEC B20CS51SNW/02
✔  NEC B20CS81SNS/02
✔  NEC KAN56V10NE/03
✔  NEC B20CS50SNW/01
✔  NEC B20CS80SNB/01
✔  NEC B20CS81SNW/01
✔  NEC KAN56V10NE/04
✔  NEC B20CS50SNW/02
✔  NEC B20CS80SNB/02
✔  NEC B20CS81SNW/02
✔  NEC KAN56V10NE/05
✔  NEC B20CS51SNB/01
✔  NEC B20CS80SNS/01
✔  NEC KAN56V10AU/01
✔  NEC KAN56V10SA/01
✔  NEC B20CS51SNB/02
✔  NEC B20CS80SNS/02
✔  NEC KAN56V10AU/02
✔  NEC KAN56V10SA/02
✔  NEC KAN56V10TI/01
✔  NEC KAN56V40AU/02
✔  NEC KAN56V50/05
✔  NEC KAN58A10/07
SKU NumberFIT_0002863_004_00024



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU FIT_0002863_004_00024
Brand NEC
