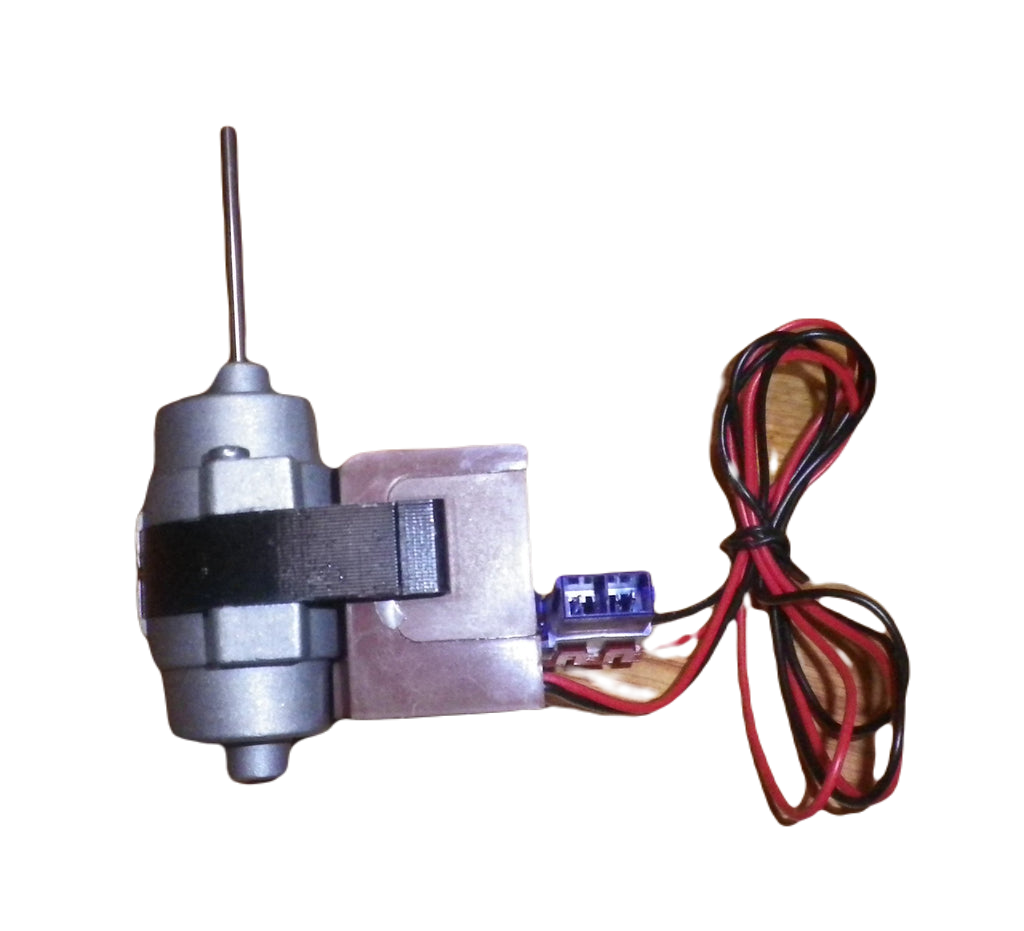

This is a replacement Low Voltage Evaporator Fan Motor. It is suitable for replacing spare parts with SEIOM100 part number for Daewoo Fridges and Freezers.

SALIN is a leading Australian appliance spare parts distributor specializing in DAEWOO applicances. We take pride in our ability to bring hard-to-find DAEWOO spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our DAEWOO range is genuine.

TECHNICAL SHEET
Part NoSEIOM100
NotesLow Voltage Evaporator Fan Motor to suit some NEC & Daewoo No Frost Fridges.Part No. SEIOM100.Other numbers on motor - D4612AAA21.Suitable replacement for RF948, 3015915900, D4612AAA20, Bosch 00601067, 601067, Baumatic 07040440.Small fan motor suitable for some Daewoo electronic frost free refrigerators. Also fits many other models from Smeg, Bosch, NEC & other brands made by Daewoo.Low voltage operation. Fitted with 2 way power connector.13volt, 3.3watt, 0.233amp, 2050rpm.Shaft length 39mm, shaft diameter 3.1mm, total depth 100.3mm from tip of shaft to back of fan body, thickness of motor from front to back is 49.6mm. Fits the following models:-Baumatic:Titan 1, Titan 2Bosch:B20CS50SNB/01, B20CS51SNI/01, B20CS80SNW/01, KAN56V10AU/03, B20CS50SNB/02, B20CS51SNI/02, B20CS80SNW/02, KAN56V10AU/04, B20CS50SNI/01, B20CS51SNS/01, B20CS81SNB/01, KAN56V10AU/05, B20CS50SNI/02, B20CS51SNS/02, B20CS81SNB/02, KAN56V10NE/01, B20CS50SNS/01, B20CS51SNW/01, B20CS81SNS/01, KAN56V10NE/02, B20CS50SNS/02, B20CS51SNW/02, B20CS81SNS/02, KAN56V10NE/03, B20CS50SNW/01, B20CS80SNB/01, B20CS81SNW/01, KAN56V10NE/04, B20CS50SNW/02, B20CS80SNB/02, B20CS81SNW/02, KAN56V10NE/05, B20CS51SNB/01, B20CS80SNS/01, KAN56V10AU/01, KAN56V10SA/01, B20CS51SNB/02, B20CS80SNS/02, KAN56V10AU/02, KAN56V10SA/02, KAN56V10TI/01, KAN56V40AU/02, KAN56V50/05, KAN58A10/07, KAN56V10TI/02, KAN56V40AU/03, KAN56V50/06, KAN58A10/08, KAN56V10TI/03, KAN56V40AU/04, KAN56V50/07, KAN58A10/09, KAN56V10TI/04, KAN56V40AU/05, KAN56V50/08, KAN58A10/10, KAN56V10TI/05, KAN56V40SA/01, KAN58A10/01, KAN58A10GB/01, KAN56V10TI/06, KAN56V40SA/02, KAN58A10/02, KAN58A40/01, KAN56V10TI/07, KAN56V50/01, KAN58A10/03, KAN58A40/02, KAN56V10TI/08, KAN56V50/02, KAN58A10/04, KAN58A40/03, KAN56V10TI/09, KAN56V50/03, KAN58A10/05, KAN58A40/04, KAN56V40AU/01, KAN56V50/04, KAN58A10/06, KAN58A40/05, KAN58A40/06, KAN58A40AU/06, KAN58A40GB/08, KAN58A50/05, KAN58A40/07, KAN58A40AU/07, KAN58A40GB/09, KAN58A50/06, KAN58A40/08, KAN58A40AU/08, KAN58A40GB/10, KAN58A50/07, KAN58A40/09, KAN58A40GB/01, KAN58A40J/01, KAN58A50/08, KAN58A40/10, KAN58A40GB/02, KAN58A40J/02, KAN58A50/09, KAN58A40AU/01, KAN58A40GB/03, KAN58A40J/03, KAN58A50/10, KAN58A40AU/02, KAN58A40GB/04, KAN58A50/01, KAN58A50GB/01, KAN58A40AU/03, KAN58A40GB/05, KAN58A50/02, KAN58A50GB/02, KAN58A40AU/04, KAN58A40GB/06, KAN58A50/03, KAN58A50GB/06, KAN58A40AU/05, KAN58A40GB/07, KAN58A50/04, KAN58A50GB/07, KAN58A50GB/08, KAN58A50TI/02, KAN58A70AU/03, KAN58A70NE/06, KAN58A50GB/09, KAN58A70/05, KAN58A70AU/04, KAN58A70NE/07, KAN58A50GB/10, KAN58A70/06, KAN58A70AU/05, KAN58P90/01, KAN58A50NE/01, KAN58A70/07, KAN58A70AU/07, KAN58P90/02, KAN58A50NE/02, KAN58A70/08, KAN58A70AU/08, KAN58P90/03, KAN58A50NE/03, KAN58A70/09, KAN58A70NE/01, KAN58P90/04, KAN58A50NE/04, KAN58A70/10, KAN58A70NE/02, KAN58P90/05, KAN58A50NE/05, KAN58A70/11, KAN58A70NE/03, KAN58P90/06, KAN58A50NE/06, KAN58A70AU/01, KAN58A70NE/04, KAN58P90/07, KAN58A50TI/01, KAN58A70AU/02, KAN58A70NE/05, KAN58P90/08, KAN58P90/09, KAN60A40/01, KAN60A40AU/01, KAN60A40TI/01, KAN58P90/10, KAN60A40/02, KAN60A40AU/02, KAN60A40TI/02, KAN58P95/01, KAN60A40/03, KAN60A40J/01, KAN60A40TI/03, KAN58P95/02, KAN60A40/04, KAN60A40J/02, KAN60A40TI/04, KAN58P95/03, KAN60A40/05, KAN60A40J/03, KAN60A40TI/05, KAN58P95/04, KAN60A40/06, KAN60A40NE/01, KAN60A40TI/06, KAN60A15NE/01, KAN60A40/07, KAN60A40NE/02, KAN60A40TI/07, KAN60A15NE/02, KAN60A40/08, KAN60A40NE/03, KAN60A40TI/08, KAN60A15NE/03, KAN60A40/09, KAN60A40NE/04, KAN60A41K/01, KAN60A15NE/04, KAN60A40/10, KAN60A40NE/05, KAN60A41K/02, KAN60A41K/03, KAN61A40TI/06, KAN61A40TI/08, KAN61A40TI/01, KAN61A40TI/07, KAN61A40TI/09Daewoo:FRN-U20BC, FRN-U20DC, FRN-U20FC, FRN-U20IC, FRS-U20BC, FRS-U20DAI, FRS-U20DC, FRS-U20DCB, FRS-U20IAI, FRS-U20ICW, DRS30DSMB, FRAU20DCBNeff:K3940X6/01, K3950X6GB/06, K3990X6/01, K3990X6GB/04, K3940X6/02, K3950X6GB/07, K3990X6/02, K3990X6GB/05, K3940X6/03, K3970X6/01, K3990X6/03, K3990X6GB/06, K3940X6/04, K3970X6/02, K3990X6/04, K3990X7/01, K3940X6GB/01, K3970X6/03, K3990X6/05, K3990X7/02, K3940X6GB/05, K3970X6/04, K3990X6/06, K3990X7/03, K3940X6GB/06, K3970X6/05, K3990X6/07, K3990X7/04, K3940X6GB/07, K3970X6/06, K3990X6GB/01, K3990X7GB/01, K3950X6GB/01, K3970X6/07, K3990X6GB/02, K3950X6GB/05, K3970X6/08, K3990X6GB/03Siemens:KA58NA40GB/01, KA58NA40GB/07, KA58NA50GB/07, KA58NP90GB/07, KA58NA40GB/06, KA58NA50GB/01, KA58NP90GB/05NEC:FR480, NTM470RWH, NTM510RWH, NTM470RWHOmega:FRS645S, FRR616S, FRR721S, FRS645S, FRW616S
TitleLow Voltage Evaporator Fan Motor For Daewoo B20CS50SNI/01 Fridges and Freezers
CategoryAppliance Spares > Kitchen Appliances > Fridges & Freezers
Replacement ItemLow Voltage Evaporator Fan Motor
Compatible Brands✔ Smeg
✔ Bosch
✔ Daewoo
✔ NEC
Replacing Parts✔ D4612AAA21
Suitable Models✔  Daewoo RF948
✔  Daewoo 3015915900
✔  Daewoo D4612AAA20
✔  Daewoo 00601067
✔  Daewoo 601067
✔  Daewoo 07040440
✔  Daewoo B20CS50SNB/01
✔  Daewoo B20CS51SNI/01
✔  Daewoo B20CS80SNW/01
✔  Daewoo KAN56V10AU/03
✔  Daewoo B20CS50SNB/02
✔  Daewoo B20CS51SNI/02
✔  Daewoo B20CS80SNW/02
✔  Daewoo KAN56V10AU/04
✔  Daewoo B20CS50SNI/01
✔  Daewoo B20CS51SNS/01
✔  Daewoo B20CS81SNB/01
✔  Daewoo KAN56V10AU/05
✔  Daewoo B20CS50SNI/02
✔  Daewoo B20CS51SNS/02
✔  Daewoo B20CS81SNB/02
✔  Daewoo KAN56V10NE/01
✔  Daewoo B20CS50SNS/01
✔  Daewoo B20CS51SNW/01
✔  Daewoo B20CS81SNS/01
✔  Daewoo KAN56V10NE/02
✔  Daewoo B20CS50SNS/02
✔  Daewoo B20CS51SNW/02
✔  Daewoo B20CS81SNS/02
✔  Daewoo KAN56V10NE/03
✔  Daewoo B20CS50SNW/01
✔  Daewoo B20CS80SNB/01
✔  Daewoo B20CS81SNW/01
✔  Daewoo KAN56V10NE/04
✔  Daewoo B20CS50SNW/02
✔  Daewoo B20CS80SNB/02
✔  Daewoo B20CS81SNW/02
✔  Daewoo KAN56V10NE/05
✔  Daewoo B20CS51SNB/01
✔  Daewoo B20CS80SNS/01
✔  Daewoo KAN56V10AU/01
✔  Daewoo KAN56V10SA/01
✔  Daewoo B20CS51SNB/02
✔  Daewoo B20CS80SNS/02
✔  Daewoo KAN56V10AU/02
✔  Daewoo KAN56V10SA/02
✔  Daewoo KAN56V10TI/01
✔  Daewoo KAN56V40AU/02
✔  Daewoo KAN56V50/05
✔  Daewoo KAN58A10/07
SKU NumberFIT_0002862_003_00015



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU FIT_0002862_003_00015
Brand Daewoo
