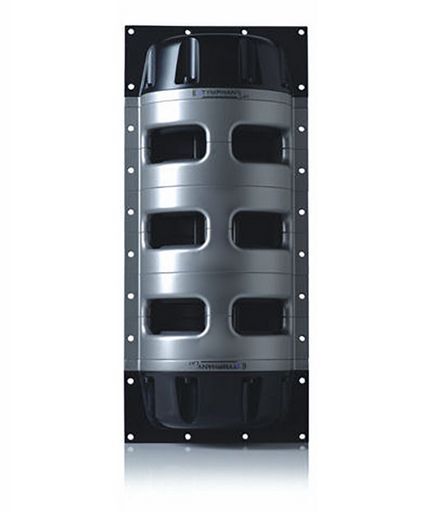

LINEAR ARRAY TRANSDUCER (LAT) 5 WOOFER
SIX 5” WOOFERS IN PARALLEL - EQUIVALENT TO 2x 10” SUBS
SKU code: WES_LAT500-8_2
This is a LINEAR ARRAY TRANSDUCER (LAT) 5 WOOFER of brand Peerless.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LINEAR ARRAY TRANSDUCER (LAT) 5 WOOFER |
| Notes | SIX 5” WOOFERS IN PARALLEL - EQUIVALENT TO 2x 10” SUBS Dual voice coils: wire them together in parallel for “Zn”. Suit ported box 30L and up. Requires Low-pass crossover up to 500Hz. Super modern design style “Equivalent in power to Two 10” Subwoofers”. Champagne Silver, black ends. Heavy duty 1.5” voice coils. 6x masts coupled to 6x cones. Power 250Wrms IEC noise test Claimed 750W Long Term. Mechanical cancelling of distortion (push-pull). A unique designed solution for the automotive environment that boasts impressive performance too.A redesign of the subwoofer that enables big sound without a typically large driver. This revolutionary compact unit is the first audio transducer to enable great bass to the new generation of consumer lifestyle products by delivering a richer sound experience to places never before thought possible. With its new slim shape, no mechanical vibration, and sleek styling, the Tymphany LAT represents a significant breakthrough in transducer technology. For example, the Tymphany LAT500 packs the power of TWO 10” subwoofers into a thin tube-shaped transducer only 5” wide! A conventional cabinet is still required, however, the LAT allows greater flexibility for unique aesthetically enhanced designs. Specifications are for both voice coils Wired in Parallel: |
| Description | LINEAR ARRAY TRANSDUCER (LAT) 5' WOOFER |
| Type | Subwoofer |
| Size | 5' tube |
| Price Type | each |
| Power | 250Wrms |
| Width | 160mm |
| Length | 380mm |
| Impedance | 8Ω (Re 8.0Ω) |
| Depth | 75mm |
| Sens. | 89dB |
| Re | 8.1Ω |
| Qms | 9 |
| Qes | 0.4 |
| Qts | 0.4 |
| Vas | 81L |
| Zo | 140Ω |
| Sd | 525cm² |
| SPL | 89dB |
| Fs | 28Hz |
| Zn | 8Ω |
| Le | 4.0mH |
| Rms | 3kg/s |
| VC | 38mm |
| Manufacturer | Peerless |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 200+ Watt |
| Cms | 0.21mm/N |
| QTY | 1 |
| Mms | 160g |
| Mag. | 2400g |
| Coil | 38mmØ |
| SKU No | WES_LAT500-8_2 |
