LiFePO4 Rechargeable Lithium Battery Drypower | Capacity: 50Ah | 12.8V | Terminal: F8 | For Medical | For Solar and more
RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY
SKU code: WES_12LFP50P_1

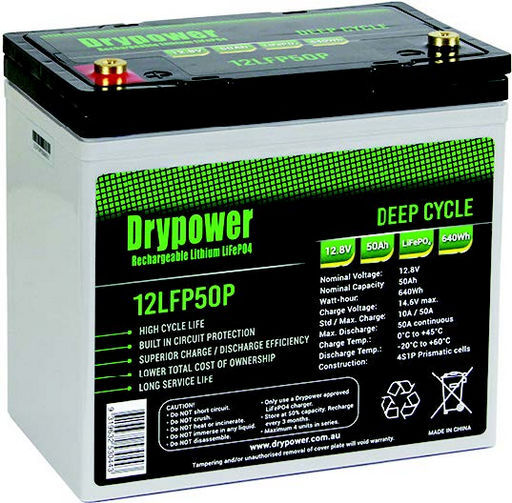

This is a 12.8V 50AH LiFePO4 PRISMATIC CELLS of brand Drypower.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 12.8V 50AH LiFePO4 PRISMATIC CELLS |
| Notes | RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY Drypower 12LFP50P is a 12.8V 50Ah Lithium Iron Phosphate (LiFePO4) rechargeable battery with M6 bolt terminals. Compact and light weight compares to SLA batteries with the same capacity. Fast charging. The battery has a 4S1P configuration. This battery is made with Prismatic LiFePO4 cells inside and should only be used and mounted in an upright position for the best service life.Long Service Life, >2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint. More Power p/kg.Enclosed in IP54 ingress rated case with closed loop terminals - suitable for harsh environmentsStable Chemistry & Built-in Circuit ProtectionLightweight, Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.Wide Operating Temperature Tolerance from -20°C up to +60°C.Fully Recyclable Battery, with no lead or calcium that can leak into the enviroment. Note: Prismatic LiFePO4 cells design, this battery should only be used and mounted in an upright position for the best service life. |
| Description | Drypower 12.8V 50Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable |
| Voltage | 12.8V |
| Assembly | 4S1P |
| Capacity | 50Ah |
| Cell Type | Prismatic |
| Cells | IFP23140160 |
| Charge Current Max. | 50A |
| Charge Voltage Max. | 146.6V |
| Discharge Current Max | 50A |
| Discharge Cut-off Voltage | 10V |
| Height | 210mm |
| Height (Inc Terminal) | 216mm |
| IP | IP54 |
| Length | 229mm |
| Manufacturer | Drypower |
| Orientation | Upright only |
| Parallel | No |
| Series | Up to 4S |
| Size | 229x138x210mm |
| Term. | F8 (M6 Bolt) |
| Terminal Type | F8 (M6 Bolt) |
| Volts | 12.8V |
| Watt | 640Wh |
| Weight | 5.95kg |
| Width | 138mm |
| SKU No | WES_12LFP50P_1 |
