LiFePO4 Rechargeable Lithium Battery Drypower | Capacity: 200Ah | 12.8V | Terminal: F18 | For Medical | For Solar and more
RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY
SKU code: WES_12LFP200P_1

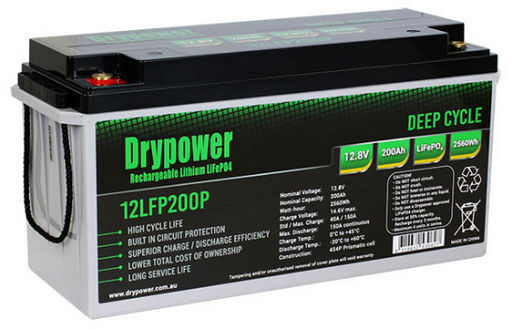

This is a 12.8V 200Ah LiFePO4 PRISMATIC CELLS of brand Drypower.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 12.8V 200Ah LiFePO4 PRISMATIC CELLS |
| Notes | RECHARGEABLE LITHIUM IRON PHOSPHATE BATTERY Drypower 12LFP200P is a 12.8V 200Ah Lithium Iron Phosphate (LiFePO4) rechargeable battery with M8 bolts terminals. Compact and light weight compares to SLA batteries with the same capacity. Fast charging. The battery has a 4S4P configuration. This battery is made with prismatic LiFePO4 cells inside and should only be used and mounted in an upright position for the best service life.Rechargeable Lithium LiFePO4 high power modules to handle anything SLA can. Get 100% capacity utilisation at less than half the weight. Advanced battery technology for cyclic and motive power applications such as mobility, recreational caravan & RV, marine, medical equipment, solar applications and more. Deep cycle power rechargeable lithium batteries with over 2000 cycles to 100% DoD in industrial or high drain applications. All the power without the bulky weight of Lead Acid battery equivalents. High rate discharge capable and superior total capacity utilisation (up to 100% DoD) with a flat discharge curve for strong, consistent power delivery. Low self discharge and long storage life with no risk of sulphation. Integrated layers of safety to IEC62133-2:2017 and UN38.3 standards at the cell level as well as BMS level protection against over charge, over voltage, under voltage and over temperature. Enclosed in IP5x/IP6x rated protective case for better durability in harsh environments. What is Total Cost of Ownership? Total Cost of Ownership (TCO) refers to the cost of owning and running an asset. It is a useful way of assessing the value of a product over its service life, as opposed to simply looking at its upfront pricing. In a typical TCO scenario, the cost of running a Drypower Rechargeable Lithium battery can be as low as 1/3* the cost of an AGM lead acid battery. *This is an approximate figure and provided as a guide only. This figure may vary by region, provider/s, battery brand/models, device and/or application, and user’s individual usage pattern.Long Service Life, >2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint. More Power p/kg.Enclosed in IP64 ingress rated case with closed loop terminals - suitable for harsh environmentsStable Chemistry & Built-in Circuit ProtectionLightweight, Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.Wide Operating Temperature Tolerance from -20°C up to +60°C.Fully Recyclable Battery, with no lead or calcium that can leak into the environment. Note: Upright orientation only - Drypower Rechargeable Lithium batteries with prismatic LiFePO4 cells inside should only be used and mounted in an upright position for the best service life. |
| Description | Drypower 12.8V 200h Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable |
| Voltage | 12.8V |
| Assembly | 4S4P |
| Capacity | 200Ah |
| Cell Type | Prismatic |
| Cells | IFP23140160 |
| Charge Current Max. | 150A |
| Charge Voltage Max. | 14.6V |
| Discharge Current Max | 150A |
| Discharge Cut-off Voltage | 10V |
| Height | 240mm |
| Height (Inc Terminal) | 240mm |
| IP | IP64 |
| Length | 490mm |
| Manufacturer | Drypower |
| Orientation | Upright only |
| Parallel | No |
| Series | Up to 4S |
| Size | 490x170x240mm |
| Term. | F18 (M8 Bolt) |
| Terminal Type | F18 (M8 Bolt) |
| Volts | 12.8V |
| Watt | 2560Wh |
| Weight | 21.5kg |
| Width | 170mm |
| SKU No | WES_12LFP200P_1 |
