This is a LED LOW-VOLTAGE CONTROLLER of brand Celestra.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

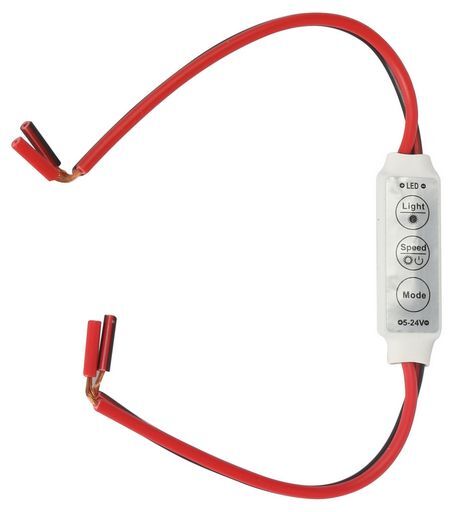

Title LED LOW-VOLTAGE CONTROLLER
Notes I/O BRIGHTNESS PLUS FLASH & FADE EFFECTS This inline LED strip light controller is suitable for use with SMD G4 series LED, SMD3528 and SMD5050 5M light strips. It includes an ON/OFF/SPEED switch, brightness switch and a mode switch for switching to flash or fade effects. 2 Bare wire on both ends.Suitable for a majority of 12V or 24V LEDs on a single power rail (two wires) Tested to 2.5A long term, 3.2A maximum, any higher will reduce reliability Tested with the following models from our range including, but not limited to: G4-SMD51-C3 G4-SMD51-C6 G4-SMD75-C3 G4-SMD75-C6 G4-SMD42-C3 G4-SMD42-C6 G4-SMD9-C3 G4-SMD9-C6 G4-SMD21-C3 G4-SMD21-C6  SMD5050CW SMD5050WW SMD5050RD SMD5050BU SMD5050YL SMD5050GN  SMD3528CW SMD3528WW SMD3528RD SMD3528YL SMD3528GN SMD3528BU SE48F-W SE48F-CW SK90G-CW SK90G-W  LED381-CW LED601-CW LED803-CW Compatible with G4-SMD51-C3, G4-SMD51-C6, G4-SMD75-C3, G4-SMD75-C6, G4-SMD42-C3, G4-SMD42-C6, G4-SMD9-C3, G4-SMD9-C6, G4-SMD21-C3, G4-SMD21-C6, SMD5050CW, SMD5050WW, SMD5050RD, SMD5050BU, SMD5050YL, SMD5050GN, SMD3528CW, SMD3528WW, SMD3528RD, SMD3528YL, SMD3528GN, SMD3528BU
Current2.5A nom
Power36Wmax
Voltage12Vdc/24Vdc
ManufacturerCelestra
SKU NoWES_LED-LSMC_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_LED-LSMC_2
Brand Celestra
