LCD MULTI-SCREEN VIDEO WALL CONTROL SYSTEM
LCD MULTI-SCREEN VIDEO WALL CONTROL SYSTEM
SKU code: WES_CVW-11HS_1

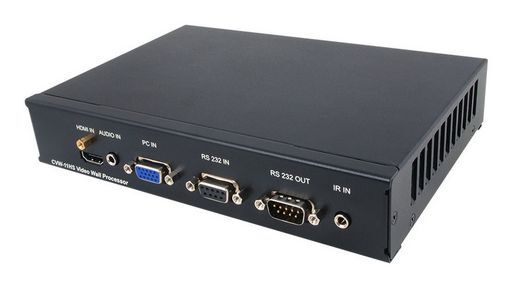

This is a LCD MULTI-SCREEN VIDEO WALL CONTROL SYSTEM of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LCD MULTI-SCREEN VIDEO WALL CONTROL SYSTEM |
| Notes | LCD MULTI-SCREEN VIDEO WALL CONTROL SYSTEM Need to capture the public’s attention! Why not get a Multi-Screen Video Wall control system? Ideal for advertising, entertaining and displaying information. This allows users to cascade a HDMI or PC source to multiple LCD panels. By use of the built-in RS-232 control you are able to fully customise each of the LCD panels giving you complete control over multiple screen video walls including colour, brightness trim and gap trim. Resolution is not an issue with the embedded scaler. There is a pair of additional L/R RCA converter for user to output analog audio (extracted from the HDMI source, or routed from the analog audio input) to local speakers. Each monitor will require one CVW-11HS that are then coordinated together by RS232 communication leads (inc.) and OSD menu setup via IR remote. Note: An additional HDMI Splitter (to the number of monitors) and leads, etc. will be required to set up the system.Supports six video wall combinations with HDMI 2x2 (4), 3x2 (6), 3x3 (9), 4x3 (12) 4x4 (16) 5x5 (25) screensSupports both HDMI and PC Sub-D (with 3.5mm audio) input sourcesResolution supported up to 1080p full HD inputUse RS-232 cables to cascade over every connected CVW-11HS boxSupports external IR receiver for IR remote control of CVW-11HS boxNote: Requires HDMI or PC Sub-D (with 3.5mm audio) signal splitter to distribute video / audio signal to each connected CVW-11HS box. |
| Description | Video Wall Control Box |
| Input | HDMI |
| Output | 4, 9, 16, 25X |
| Scaler | TV Wall |
| Max Res. | 1080p@60Hz |
| Size | 200x155x45mm |
| Dimensions | 200x155x45mm |
| Page | 3 |
| Manufacturer | Cypress |
| Chassis. | Metal |
| RS-232 | Yes |
| SKU No | WES_CVW-11HS_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_CVW-11HS_1 |
| Brand | Cypress |
