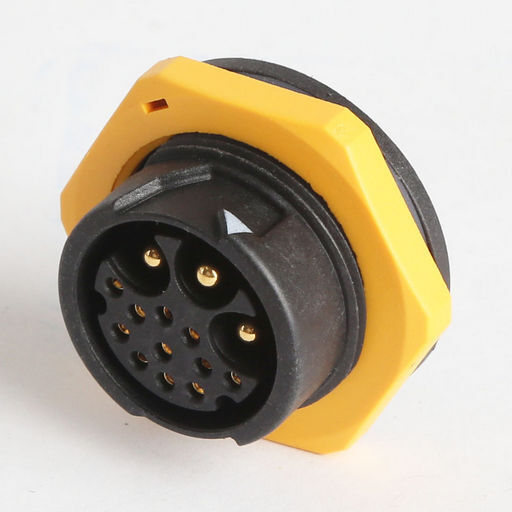

LARGE SERIES SOCKET PUSH LOCK
FRONT PANEL MOUNT - MALE PINS
SKU code: WES_24311535-01_1
This is a LARGE SERIES SOCKET PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES SOCKET PUSH LOCK |
| Notes | FRONT PANEL MOUNT - MALE PINS Receptacle for accepting Push Lock Large Connector Plugs.Simple push to lock plug insertion, then twist and pull to release.Mounting screw is attached to the front of the chassis panel. This high-quality connector is self-locking when plugged into its mate, making insertion and extraction simply and quickly, so input and output devices can be quickly and easily replaced. All the Large Series products are manufactured with high quality materials to meet the various requirements of different environments, copper needles used are phosphor bronze with low corrosion high conductivity brass plating. Cap to suit: 804-00005-00 |
| Description | Large series 3pin+11socket front panel mount(push lock) |
| Cable | 12AWG *3C + 24AWG *11C |
| Contact | 3+11(MF) |
| Hole | 25mmØ |
| Wire Gauge | 2.5mm²*3C + 0.2mm² *11C |
| Panel Thickness | Max 2.2mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A+5A |
| Chogori Cat Page | 84 |
| Mechanical Life | 500 mating cycles |
| Manufacturer | Chogori |
| SKU No | WES_24311535-01_1 |
