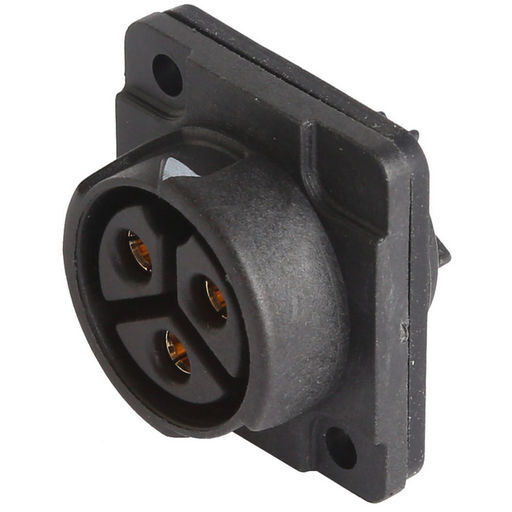

LARGE SERIES SOCKET PUSH LOCK
SQUARE PANEL MOUNT - FEMALE PIN
SKU code: WES_24309636-01_1
This is a LARGE SERIES SOCKET PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES SOCKET PUSH LOCK |
| Notes | SQUARE PANEL MOUNT - FEMALE PIN Blue capped compatible. The push-locking connector is simple and fast to plug in and out. Pins from 2 to 9, and additional 3+9 & 3+11. The square flange is compatible with Amphenol® and Neutrik® installation holes. All the products are manufactured with high quality materials to meet the various requirements of different environments. The plastic material used is high performance PA66. Male pins used have excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. The connector can insert and withdraw to 3000 times or more, ensure a reliable contact every time. Cap to suit: 804-00005-00 |
| Description | Large series 3socket+9pin square flange panel mount(push lock) |
| Cable | 12AWG *3C + 24AWG *9C |
| Contact | 3+9(FM) |
| Hole | XLR |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 2.5mm²*3C + 0.2mm² *9C |
| Panel Thickness | Max 5.0mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 20A+5A |
| Chogori Cat Page | 86 |
| Manufacturer | Chogori |
| SKU No | WES_24309636-01_1 |
