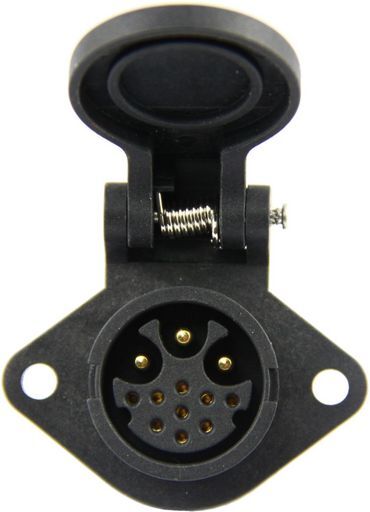

.LARGE SERIES SOCKET PUSH LOCK
RHOMBUS PANEL MOUNT - MALE PINS
SKU code: WES_24009536-02_1
This is a .LARGE SERIES SOCKET PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .LARGE SERIES SOCKET PUSH LOCK |
| Notes | RHOMBUS PANEL MOUNT - MALE PINS Large series connector with spring loaded dust cap to keep out ingress and protect the connector when not in use. The push-locking connector is simple and fast to plug in and out. Installation type has a rhombus flange. All the products are manufactured with high quality materials to meet the various requirements of different environments, the plastic material used is high performance PA66, male pin used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. The connector can insert and withdraw to 3000 times or more, ensure a reliable contact every time. |
| Description | Large series 9pin rhombus flange panel mount with pin(push lock) |
| Cable | 18AWG |
| Contact | 9 |
| Hole | 20mmØ |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 0.75mm² |
| Panel Thickness | Max 5.0mm |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 125V |
| Rated Current | 5A |
| Chogori Cat Page | 86 |
| Holds | 20mmØ |
| Manufacturer | Chogori |
| SKU No | WES_24009536-02_1 |
