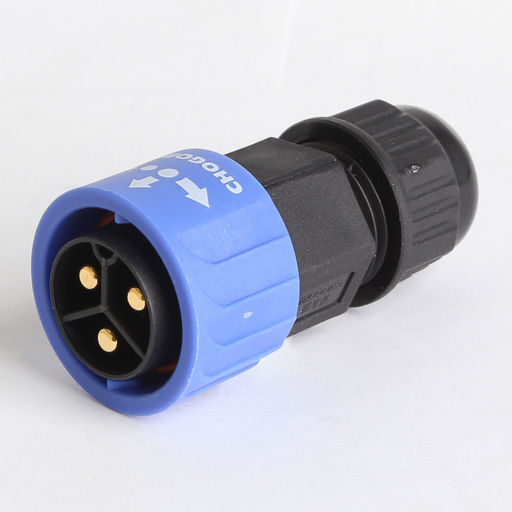

LARGE SERIES PLUG PUSH LOCK
MALE PUSH LOCK - MALE PINS
SKU code: WES_24003131-04_1
This is a LARGE SERIES PLUG PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES PLUG PUSH LOCK |
| Notes | MALE PUSH LOCK - MALE PINS This Large series connector is blue capped to indicate a different pin gender for use where the signal is in another direction to the yellow capped versions. The push-locking connector is simple and fast to plug in and out. Pins from 2 to 9, and additional 3+9 & 3+11. The plastic material used is high performance PA66. Male pins uses the excellent mechanical properties of a phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. Large series connector has good performance in waterproofing. Cap to suit: 804-00008-00 |
| Description | Large series 3pin male plug with pin field installable(push lock)50A |
| Size | 55x29mmØ |
| Cable | 8AWG |
| Contact | 3(50A) |
| Mechanical Life | 500 mating cycles |
| Cable Range | 6.5-10.5 |
| Wire Gauge | 8.4mm² |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 50A |
| Chogori Cat Page | 92 |
| Manufacturer | Chogori |
| SKU No | WES_24003131-04_1 |
