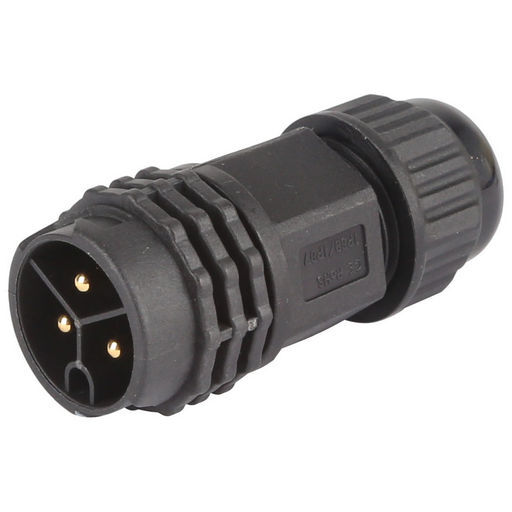

This is a LARGE SERIES INLINE PLUG PUSH LOCK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title LARGE SERIES INLINE PLUG PUSH LOCK
Notes FEMALE PUSH LOCK - MALE PINS Series inline connector for extending Large Series Connectors.The push-locking connector is simple and fast to plug in and out. Pins from 2 to 9, and additional 3+9 & 3+11. All the products are manufactured with high quality materials, the plastic material used is high performance PA66, male pin used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. Large series connector has good performance in waterproofing. IP67. Cap to suit: 804-00005-00
DescriptionLarge series 9pin female plug with pin field installable(push lock)
Size57x27mmØ
Cable18AWG
ManufacturerChogori
Contact9
Mechanical Life500 mating cycles
Cable Range6.5-10.5
Wire Gauge0.75mm²
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating125V
Rated Current5A
Chogori Cat Page94
SKU NoWES_24009331-02_1
