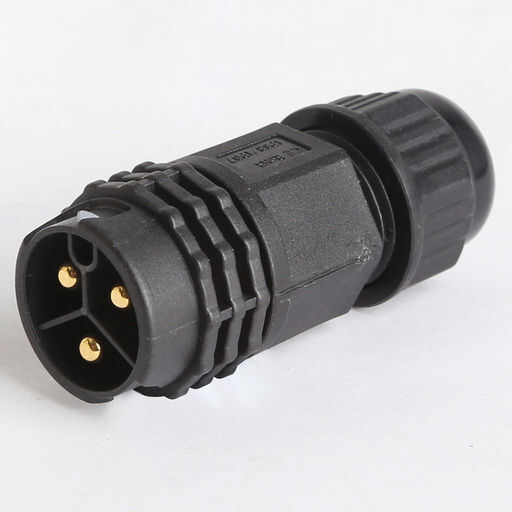

LARGE SERIES INLINE PLUG PUSH LOCK
FEMALE PUSH LOCK - MALE PINS
SKU code: WES_24003331-04_1
This is a LARGE SERIES INLINE PLUG PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | LARGE SERIES INLINE PLUG PUSH LOCK |
| Notes | FEMALE PUSH LOCK - MALE PINS Series inline connector for extending Large Series Connectors.The push-locking connector is simple and fast to plug in and out. Pins from 2 to 9, and additional 3+9 & 3+11. All the products are manufactured with high quality materials, the plastic material used is high performance PA66, male pin used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Products have certificate by CE, UL, TUV and ROHS environmental protection requirements. Large series connector has good performance in waterproofing. IP67. Cap to suit: 804-00005-00 |
| Description | Large series 3pin female plug with pin field installable(push lock)50A |
| Size | 57x27mmØ |
| Cable | 8AWG |
| Manufacturer | Chogori |
| Contact | 3(50A) |
| Mechanical Life | 500 mating cycles |
| Cable Range | 6.5-10.5 |
| Wire Gauge | 8.4mm² |
| IP | IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 300V |
| Rated Current | 50A |
| Chogori Cat Page | 94 |
| SKU No | WES_24003331-04_1 |
