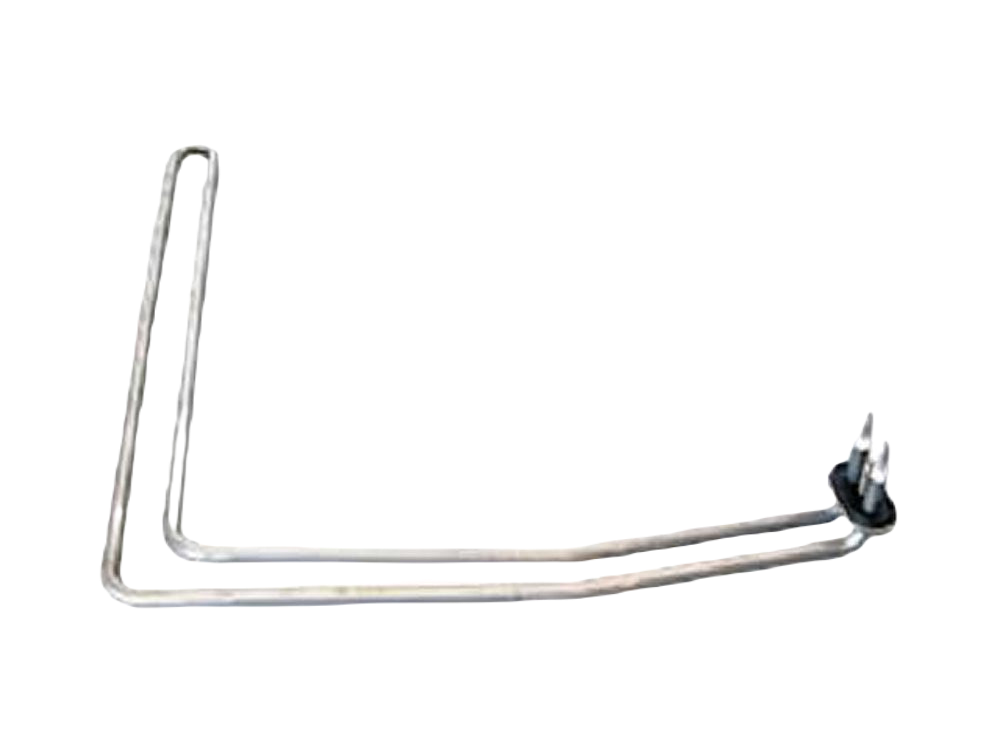

This is a replacement L-Shaped Dishwasher Heating Element. It is suitable for replacing spare parts with DWV107 part number for Ariston Dishwashers.

SALIN is a leading Australian appliance spare parts distributor specializing in ARISTON applicances. We take pride in our ability to bring hard-to-find ARISTON spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our ARISTON range is genuine.

TECHNICAL SHEET
Part NoDWV107
NotesAriston, Indesit L-Shaped Dishwasher Heating Element.Part No. DWV107. IRCA 9302 487 R.Equivalent to Indesit Part No. C00144898. Other equivalent part numbers 144898, C00046319, C00066598.Heating element, 2000Watt 240Volt. This part is often responsible for the dishwasher tripping the earth leakage circuit breaker in the meterboard.Terminals 24mm apart on an bracket 50mm X 27mm with a central mounting bolt. Arm length from centre of terminals to far side is 370mm. Arm lenth of arm furthest from the terminals is 445mm. Arm of element closest to the terminals has a slight bend. 6.4mm spade terminals.Suitable for many models and brands that use this type of element.Fits Ariston A2080.2UK, A2080UK, AF200, AF250, AF300, AF300SS, AFA250, AFA300SSUK, AFA300UK, LI620, LI62UK, LS2020UK, LSI61UK, LSI61UK/1, LST660UK, LSV66BKUK, LSV66BKUK/1, LSV66BRUK, LSV66BRUK/1, LSV66IXUK, LSV66IXUK/1, LSV66RUKAN, LSV66RUKGN, LSV66UK, LSV66WHUK, LSV66WHUK/1, LV62BKUK, LV62BRUK, LV62IXUK, LV62WHUK, SF200, Creda, IDI60, IDV60B, IDV60W, Hotpoint DWV10P, DWV10P.2, IDL530UK.2, IDL530UK.3, Philco RDW1221 & many Indesit models
TitleL-Shaped Dishwasher Heating Element For Ariston IDI60 Dishwashers
CategoryAppliance Spares > Kitchen Appliances > Dishwashers
Replacement ItemL-Shaped Dishwasher Heating Element
Compatible Brands✔ Ariston
✔ Indesit
Replacing Parts✔ C00144898
Suitable Models✔  Ariston A2080.2UK
✔  Ariston A2080UK
✔  Ariston AF200
✔  Ariston AF250
✔  Ariston AF300
✔  Ariston AF300SS
✔  Ariston AFA250
✔  Ariston AFA300SSUK
✔  Ariston AFA300UK
✔  Ariston LI620
✔  Ariston LI62UK
✔  Ariston LS2020UK
✔  Ariston LSI61UK
✔  Ariston LSI61UK/1
✔  Ariston LST660UK
✔  Ariston LSV66BKUK
✔  Ariston LSV66BKUK/1
✔  Ariston LSV66BRUK
✔  Ariston LSV66BRUK/1
✔  Ariston LSV66IXUK
✔  Ariston LSV66IXUK/1
✔  Ariston LSV66RUKAN
✔  Ariston LSV66RUKGN
✔  Ariston LSV66UK
✔  Ariston LSV66WHUK
✔  Ariston LSV66WHUK/1
✔  Ariston LV62BKUK
✔  Ariston LV62BRUK
✔  Ariston LV62IXUK
✔  Ariston LV62WHUK
✔  Ariston SF200
✔  Ariston Creda
✔  Ariston IDI60
✔  Ariston IDV60B
✔  Ariston IDV60W
✔  Ariston DWV10P.2
✔  Ariston IDL530UK.2
✔  Ariston IDL530UK.3
SKU NumberFIT_0000358_001_00033



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU FIT_0000358_001_00033
Brand Ariston
