This is a INDUCTORS ENCASED of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

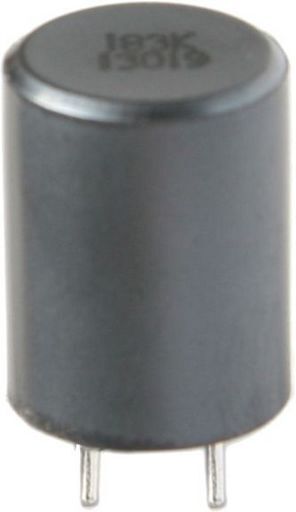

Title INDUCTORS ENCASED
Notes TOKO 10RB Ferrite material core and magnetically shielded casing. Size = 10x14mmØ  Pitch = 5mm.  Tol. = 10%  Q = 100 minimumA range of inductors efficient in a variety of filter circuits.All with a ferrite screening cover to prevent RF radiation.Ideal as a choke coil.Due to its high inductance and lower frequency, it is suitable in audio processing circuits for low, high and bandpass filtering requiring high dynamic range.High temperature epoxy resin used to hold base and drum securely.Pot core provides good electromagnetic shielding for low radiated noise, making it ideal for use in applications where components are in close proximity to one another.TOKO adjustment process is done ‘on line’ with automatic calibrating equipment to produce a consistent inductance value.Final setting is then permanently held in place by a special epoxy resin to effect an environmentally sealed device.
Pitch5mm
Size14x10
mH36.0
mAmax8
DCΩ45
Tolerance10%
SKU NoWES_TK10363_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_TK10363_1
Brand Universal
