This is a INDUCTORS CROSSOVER - SOLEN of brand Solen.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

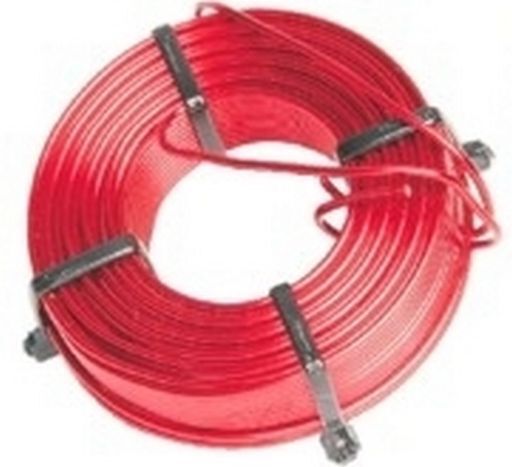

Title INDUCTORS CROSSOVER - SOLEN
Notes S14 SERIES OFC AIR-CORE 14AWG 1.63mm High grade, low-loss, pure 99.99% copper wire. Air-core. Very low Magneto-striction distortion. Induction value remains constant regardless of voltage and current variation. Low DCR. Low skin effect losses. Low proximity effect. Low self capacitance. No saturation. No hysteresis. High power. A premium grade component developed for the audiophile.Tolerance Value ±1% Tolerance DCR (Ohms) ±5% Dimensions (mm) ±10% 1.63mm O/D 14 AWG Temperature -55 °C to +85 °C. Insulation: 130 °C. Solderable: 360 °C. Voltage: 1000 VAC http://www.solen.ca Recommended: Maximum DCR for Series inductors for 8Ω load is 0.6Ω Total. Maximum DCR for Parallel inductors for 8Ω load is 1.2Ω Total.
Value.27mH
Size14x29x57 mm
Solen#S14.27
Ω.10Ω
ManufacturerSolen
SKU NoWES_SOL0.27_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_SOL0.27_2
Brand Solen
