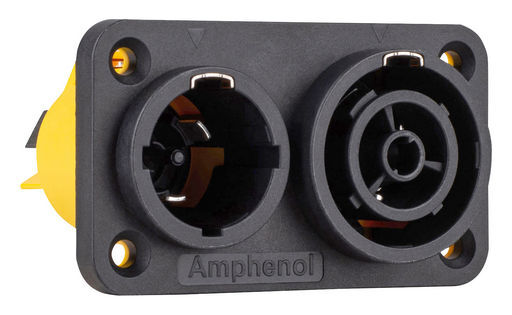

HPT DUAL POWER INLET/OUTLET PANEL MOUNT
AMPHENOL HPT
SKU code: WES_HPT-3-CC_1
This is a HPT DUAL POWER INLET/OUTLET PANEL MOUNT of brand Amphenol.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HPT DUAL POWER INLET/OUTLET PANEL MOUNT |
| Notes | AMPHENOL HPT The Amphenol HPT-3-CC is a locking 16A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The HPT-3-CC has one body with both inlet and outlet sockets with 1/4 flat tab terminals.Heavy duty sealed power connector for harsh and demanding environmentUses high impact UV-resistant materialsLockable 16A single phase connector (USA: 20A)Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover HPT-CAPD)Easy and reliable twist lock systemTrue mains connector with breaking capacity (CBC)ENEC certified according to IEC 60320 and UL498 certified Note: Compatible with powerCON AC outdoor waterproof connectors. Use Screw #4 or M3 for mounting sold seperately. |
| Description | Dual inlet/outlet panel mount - spade lug termination |
| Manufacturer | Amphenol |
| Positions | 3 |
| Housing Colour | Black, Yellow |
| Housing Material | Thermoplastic |
| Cable | 7.5-16.0 mm O/D |
| Volts | 250V |
| Current | 16A max |
| Contact | Silver plating |
| Gender | Male, Female |
| IP Rating | IP65 |
| Series | HPT |
| Type | Power |
| SKU No | WES_HPT-3-CC_1 |
