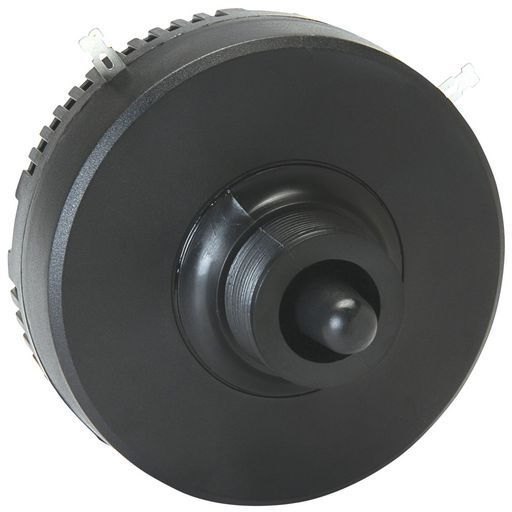

This is a HORN DRIVER ONLY MID of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HORN DRIVER ONLY MID
Notes MID-RANGE PIEZO DRIVER - REQUIRES HORN Drop-In replacement for KSN1188/A driver22mm piezo ceramic coupled 3” paper cone.Suits Motorola CTS 10” and 15” Horns.35mm 1-3/8” 18-TPI ThreadedLarger cone area forupper-mids. 10cm
DescriptionHORN DRIVER ONLY MID
Size1'
Price Typeeach
Power400Wmax
Freq.800Hz - 20KHz
QTY1
Mount18-TPI
Sens.93dB
ManufacturerDaichi
Impedance (Ohm)Piezo
Power (RMS)51-100 Watt
Inch1
Dimensions35mmØ
Diam.35mmØ
Hole-
Fo-
Fs-
Re0.3uF
Prms100W
Coil22mm
Depth70mm
SPL93dB
Brand.Daichi
OEMKSN1188A
ImpedancePiezo
ZnPiezo
SeriesPiezo
MaterialsPiezo
Mag.Piezo 22mm
TypeTweeter Horn
SKU NoWES_PZ1188_1
