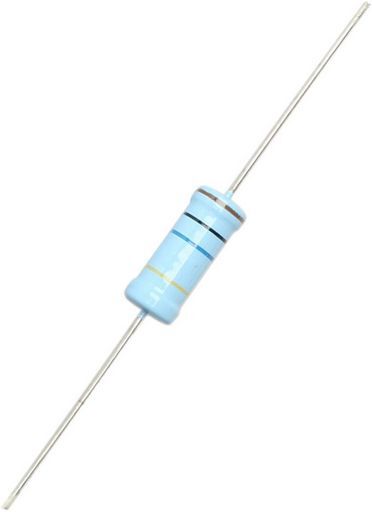

This is a HIGH VOLTAGE TV FOCUS RESISTORS of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HIGH VOLTAGE TV FOCUS RESISTORS
Notes 1 WATT, 10KV-DC, 7KV-ACrms Available in 150K, 220K, 270K, 390K, 470K, 820K, 1M, 1.2M, 1.5M, 2.2M, 3.3M, 4.7M, 5.1M, 8.2M, 10M Order as follows: Wattage + FCR + Value Eg. 150K would be ordered as 1FCR150K
Tolerance0.05
Vmax10,000V
Volts10KV-DC, 7KV-ACrms
Size18x6.7mm
Pitch25mm
Value3.3MΩ
Temp.-55°C~200°C
Lead90mm
TypeFlame Proof Resin
SKU NoWES_1FCR3.3M_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_1FCR3.3M_2
Brand Universal
