HIGH EFFICIENCY STEERED FLUX EXCITER 40W
WITH SHIELDING
SKU code: WES_DAEX30HESF-4_1

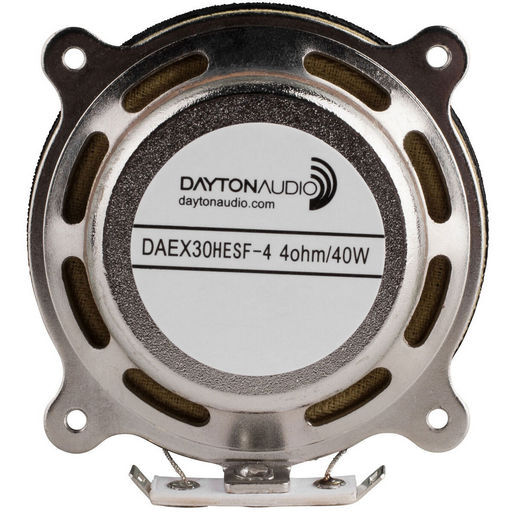

This is a HIGH EFFICIENCY STEERED FLUX EXCITER 40W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HIGH EFFICIENCY STEERED FLUX EXCITER 40W |
| Notes | WITH SHIELDING Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output. For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.High output exciter design handles up to 40 watts RMSSpecially designed neodymium motor and proprietary voice coil3M™ VHB™ adhesive ring with four mounting holesLow inductance (only 0.3 mH) motor for extended response Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | High Efficiency Steered Flux Exciter with Shielding 30mm 40W 4 Ohm |
| Coil | 30mmØ |
| Diam. | 57mmØ |
| Dimensions | 30x57mmØ |
| Fs | 300Hz |
| Height | 30mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Inch | 2.25 |
| Le | 0.31mH |
| Manufacturer | Dayton Audio |
| Power | 40Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| QTY | 1 |
| Re | 3.8Ω |
| Size | 2.25' |
| Type | Exciter |
| Width | 57mmØ |
| Zn | 4Ω |
| SKU No | WES_DAEX30HESF-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_DAEX30HESF-4_1 |
| Brand | Dayton Audio |
