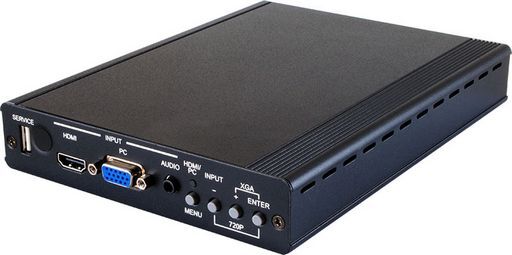

HDMI/VGA OVER HDBaseT TRANSMITTER 1080P WITH VIDEO SCALING - CYPRESS
INTEGRATED SCALER SUPPORTS OUTPUT UP TO 1080P/WUXGA (RB
SKU code: WES_CH-520TXAHS_1
This is a HDMI/VGA OVER HDBaseT TRANSMITTER 1080P WITH VIDEO SCALING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI/VGA OVER HDBaseT TRANSMITTER 1080P WITH VIDEO SCALING - CYPRESS |
| Notes | INTEGRATED SCALER SUPPORTS OUTPUT UP TO 1080P/WUXGA (RB) This HDMI/VGA over CAT5e/5/7 Transmitter with Video Scaling allows the transmission of uncompressed video and audio, as well as bi-directional IR control, RS-232 pass-through, bi-directional Power over Cable (PoC) that can power receivers and LAN serving that allows a connected device to share a network over a single CAT5e/6/7 cable up to 100m (1080p). The unit can be controlled via IR remote control and RS-232, with all information including system status, presented on its comprehensive on screen display (OSD).The integrated scaler supports a full range of output resolutions, up to 1080p for HDTV resolutions and WUXGA (RB) for PC resolutions.Supports scaling of the HDMI/PC input to a wide range of HDTV and PC output resolutions Transmission of uncompressed data over a single 100m/328 ft CAT5e/6/7 cable to a compatible receiverHDBaseT 5Play™ convergence: High-Definition Video and Audio, 100BaseT Ethernet, PoC and Control (Bidirectional IR/RS-232 pass-through)Supports control of the unit via IR, Remote control, RS-232 and on-panel controlsFeatures on-screen display (OSD) selection and display of system settings and informationSupports bi-directional 24V DC Power over Cable (PoC) to or from compatible Receivers over CAT5e/6/7 cableSupports Ethernet transmission rates up to 100Mbps to compatible receivers |
| Description | HDBaseT HDMI/VGA Transmitter over CAT5/6/7 with Video scaling |
| Input | 1x HDMI, 1xVGA |
| Output | 1x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| 3D | - |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | - |
| 4K | - |
| RS-232 | Yes |
| Max Res. | 1080p |
| Compatible with | HDBaseT receiver units with PoE function |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| Type | Transmitter |
| SKU No | WES_CH-520TXAHS_1 |
