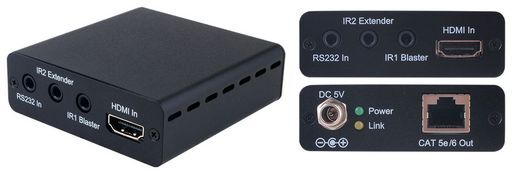

HDMI V1.4 OVER SINGLE CAT5E/6 EXTENDER WITH IR & RS232
HDMI V1.4 OVER SINGLE CAT5E/6 EXTENDER WITH IR & RS232
SKU code: WES_CH-506TX_2
This is a HDMI V1.4 OVER SINGLE CAT5E/6 EXTENDER WITH IR & RS232 of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.4 OVER SINGLE CAT5E/6 EXTENDER WITH IR & RS232 |
| Notes | The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100M with added benefit of control through the built-in RS-232 and IR ports.HDMI 1.4 including 3D, 4k×2k supports, HDCP and DVI CompliantSupports HDCP repeater and CEC functionSimultaneous transmission of uncompressed data over a single CAT6/CAT5e cable up to 100 m/328 ftUncompressed video 1080p, 60 Hz, 36-bitAudio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio3Play™ convergence: HDMI & Control (IR & RS-232)Installation friendly |
| Description | HDBaseT HDMI Transmitter over CAT5/6/7 with RS-232 |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| Interface | Transmitter |
| Compliance | HDMI 1.4 |
| 3D | Yes |
| CEC | YES |
| EDID | - |
| Max Res. | 4K @ 30Hz |
| HDCP | Yes |
| Cable Length | 100M (@ 1080p) |
| Extender Cable | CAT5e/6/7 |
| Compatible with | CH-506RX |
| Manufacturer | Cypress |
| PoE | No |
| Ethernet | No |
| Type | Transmitter |
| IR | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-506TX_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_CH-506TX_2 |
| Brand | Cypress |
