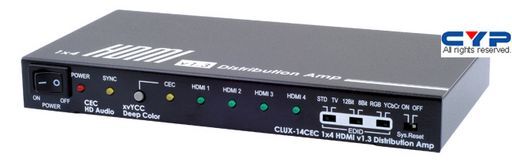

HDMI V1.3 SPLITTERS CEC
HDMI V1.3 SPLITTER
SKU code: WES_CLUX-14CEC_2
This is a HDMI V1.3 SPLITTERS CEC of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.3 SPLITTERS CEC |
| Notes | HDMI V1.3 SPLITTER From a single HDMI source you can transfer Deep Colour (10-bit and 12-bit) video and new lossless compressed digital audio with high bandwidth up to 225MHz (6.75Gbps) to 2/4/8 HDMI outputs. Besides splitting and distributing, it also does signal amplification and equalization, providing high I/O performance on both audio and video.HDMI 1.3, HDCP1.1 and DVI1.0 compliant Receiver. Deep colour video up to 12bit, 1080p@(24/60)Hz. Simultaneously displays one HDMI source onto eight HDMI displays. HDCP keysets allow each output to work independently. Supports DVI source/display via HDMI to/from DVI adaptor cable. LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Audio. PC and HDTV resolutions from VGA to UXGA and 480i to 1080p. 1080p/8bits resolution: the Input/Output source up to 10/10 metres.Supports EDID bypass, xvYCC and CEC bypass. CEC function support. System standby will be activated when last TV is switched to standby. |
| Description | 1 by 4 HDMI v1.3 Splitter |
| Input | 1x HDMI |
| Output | 4x HDMI |
| Interface | HDMI |
| Compliance | V1.3 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Cascade | - |
| Max Res. | UXGA/1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Page | 14 |
| HDMI Output | 4 |
| Cable Length | 6-10M |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CLUX-14CEC_2 |
