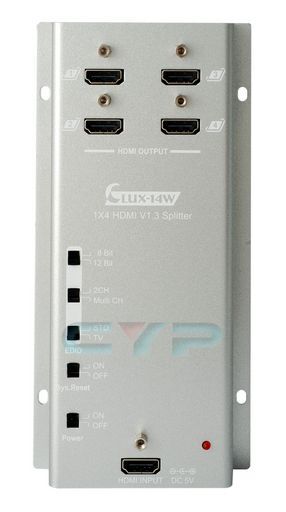

HDMI V1.3 SPLITTER (WALL MOUNT) 1080P - CYPRESS
HDMI V1.3 SPLITTER (WALL MOUNT)
SKU code: WES_CLUX-14W_1
This is a HDMI V1.3 SPLITTER (WALL MOUNT) 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.3 SPLITTER (WALL MOUNT) 1080P - CYPRESS |
| Notes | HDMI V1.3 SPLITTER (WALL MOUNT) The wall mountable 1 by 4 and 1 by 8 HDMI v1.3 splitters are specialised in taking one HDMI source and cloning it to show on 4 or 8 HDMI displays respectively. These devices support deep colour (10 & 12-bit) video with lossless compressed (Dolby®, True HD, Dolby® Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6,75Gbps). Besides just splitting and distributing, these device also amplify and equalise your signal to provide high performance I/O of audio and video. For the 8 way splitter, it also supports great features like EDID, CEC and system reset to fully support your HDMI splitting needs.HDMI v1.3, HDCP1.1 and DVI1.0 compliant . Supports Deep Colour video up to 12bit, 1080p(24/60Hz). One HDMI source can simultaneously connect with four HDMI displays. HDCP keysets allow each output to work independentlySplits an HDMI source on up to four outputs without any signal loss. Supports DVI source by using an HDMI to/from DVI adaptor cable. LPCM 7.1CH, Dolby® True HD, Dolby® Digital Plus, DTS-HD Master Audio transmission (32-192kHz Fs sample rate). PC and HDTV resolutions from VGA to WUXGA and 480i to1080p. HDMI cable distance testing showed that with 1080p/8bit resolution, the input distance is 15 M. If 1080p/12bit, the input distance is 10 M. HDMI cable with 1080p/8bit resolution, output distance up to 10MIf 1080p/12bit, the output distance can be up to 15 metres. EDID function. This unit is designed to detect the first HDMI/DVI output display’s EDID and record it in the unit. If the first detected output is empty it will pass on to the next output until the first HDMI/DVI display has been detected. When users re-plug the power, the system will automatically recover the EDID. Supports xvYCC and CEC bypass. Switch Reset button on to restore the system every 8-10mins. Buttons for EDID settings allow for fast recognition between source and display. |
| Description | 1 by 4 HDMI 1.3 Splitter |
| Input | 1x HDMI |
| Output | 4x HDMI |
| Interface | HDMI |
| Compliance | V1.3 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Cascade | - |
| Max Res. | WUXGA/1080p |
| Chassis. | Wall/Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Cable Length | 10M |
| Page | 16 |
| HDMI Output | 4 |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CLUX-14W_1 |
