HDMI V1.3 SPLITTER HDCP 1080P - CYPRESS
HDCP KEYSETS - LONG DISTANCE RUNS 30M - CASCADABLE
SKU code: WES_CLUX-12S_1
This is a HDMI V1.3 SPLITTER HDCP 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI V1.3 SPLITTER HDCP 1080P - CYPRESS |
| Notes | HDCP KEYSETS - LONG DISTANCE RUNS 30M - CASCADABLE These HDMI v1.3 HDMI splitter allows one HDMI source to connect up to two, four or eight HDMI displays simultaneously depends on the model. Compliant with HDMI v1.3 and HDCP v 1.1 specifications. It supports a wide range of PC resolution at up to 1600x1200px and HDTV resolutions at up to 1080p deep colour video and lossless compressed (Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDMI v1.3 DA series also does signal amplification and equalisation, so as to provide high performance I/O of audio and video. Each of the buffered output can run up to 30 metres and can be cascaded.HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant Receiver. Deep colour video up to 12 bit, 1080p@60Hz. One HDMI source to connect to one HDMI display simultaneously. HDCP keysets allows each output to work independently when connecting to a HDMI display. Split a HDMI source to one output without signal loss. Supports DVI source and DVI display by using adaptor cable. Dolby® Digital, DTS digital audio transmission (32-192 kHz). PC and HDTV resolutions from VGA to UXGA and 480i to 1080p. HDMI cable distance test with 1080p resolution. Input/Output source can run up to 30M.Full HDCP Compliant. |

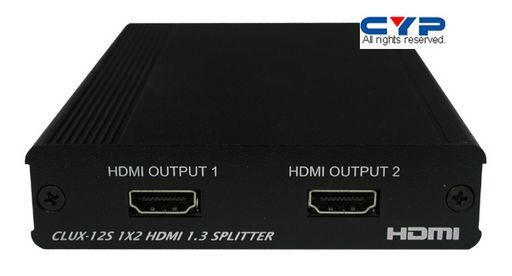

| Description | 1x2 HDMI 1.3 Splitter |
| Input | 1x HDMI |
| Output | 2x HDMI |
| Interface | HDMI |
| Compliance | V1.3 |
| 3D | Yes |
| CEC | Through |
| EDID | - |
| Cascade | - |
| Max Res. | UXGA/1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Page | 14 |
| HDMI Output | 2 |
| Cable Length | 30M |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CLUX-12S_1 |
