This is a HDMI & USB OVER IP of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HDMI & USB OVER IP

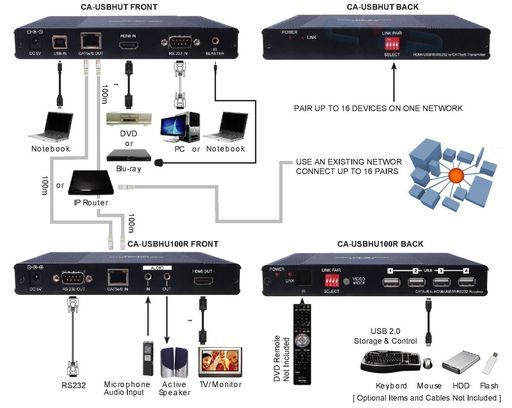

Notes ETHERNET MULTI-MEDIA KVM TX/RX Multi-Media LAN Transmitter and Receiver allow HDMI and/or USB host device to send and save data while offering four USB ports for other tasks. Includes extra functions such as IR, line-out and a microphone for users to enjoy controlling devices from far away and for sending audio/sound from your favourite audio devices. Connect to another device from the same family you can extend the transmission distance as far as you want without any signal loss / delay or connect with multiple pairs of the extender to set up a Local Area Network of up to 16 units/devices for data sharing among the connected sources and displays. The HDMI & USB over a CAT5e/6 transmitter and receiver box are the ideal choice for your HDMI & USB extension, data sharing and multimedia sharing needs.Supports data sharing over LAN cable (TCP/IP). HDMI v1.3, HDCP v1.1 and DVI v1.0 compliant. Support USB 2.0 and USB 1.1 devices. Operate with USB host controllers.True plug and play without any driver installation. Display and control host device and source equipment. Save and share data into a separate room. CAT5 cable distance tested up to 100 metres, connect with other units from the same family to operate over long distances or link up to 16 devices for data sharing. Digital display output up to 1920 x 1080@60Hz. Adopt visually lossless video compression algorithm. Automatic display mode detection.DDC synchronization. Simple set up with easy to use. LED indicators for easy viewing. Total transmission frequency 1GHz.
DescriptionTX/RX KIT - KVM / RS-232 / USB / HDMI LAN Over Cat5e/6
Max.100M
InputCat-5e/6 / 3.5mm Audio / USB-B / HDMI / IR / RS232
Output4x USB-A / HDMI / IR / RS232 / 3.5mm Audio / Cat-5e/6
InterfaceTX/RX Kit
ComplianceHDMI v1.3 / USB 2.0/1.1 / DVI V1.0
CEC-
EDID-
Max Res.1080
HDCPYes
3D-
ManufacturerCypress
SKU NoWES_CA-USB100HUT_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_CA-USB100HUT_1
Brand Cypress
