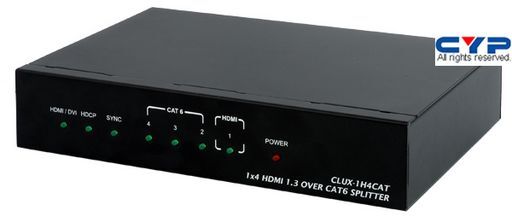

HDMI TO DUAL CAT6 SPLITTER TRANSMITTER 1080P DDC IR - CYPRESS
HDMI IN TO MULTIPLE TWIN CAT6 OUT - VIDEO, IR & DDC RETU
SKU code: WES_CLUX-1H4CAT_2
This is a HDMI TO DUAL CAT6 SPLITTER TRANSMITTER 1080P DDC IR - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI TO DUAL CAT6 SPLITTER TRANSMITTER 1080P DDC IR - CYPRESS |
| Notes | HDMI IN TO MULTIPLE TWIN CAT6 OUT - VIDEO, IR & DDC RETURN The HDMI to dual CAT6 splitters when used with CAT6 to HDMI receivers will allow user to distribute a HDMI source through the dual CAT6 cable up to 45 metres. Available in 1 by 4 and 1 by 8 models. The 1 by 4 model has 1x HDMI throughput and 3x CAT6 video outputs and the 1 by 8 model has 1x HDMI throughput and 7x CAT6 video outputs. Alternatively, the HDMI output can also be treated as an extender to connect to another HDMI splitter or cascade with other unit in multiple layers. This unit allows the user to transmit HDMI signal via CAT6 without compression over long distances (up to 45M). The HDMI to CAT6 splitter also incorporates functions like EDID, System Reset, Deep colour and IR send and return. Requires CAT6 to HDMI receiver CH-1106RXN.The HDMI to dual CAT6 splitters when used with CAT6 to HDMI receivers will allow user to distribute a HDMI source through the dual CAT6 cable up to 45 metres. Available in 1 by 4 and 1 by 8 models. The 1 by 4 model has 1x HDMI throughput and 3x CAT6 video outputs and the 1 by 8 model has 1x HDMI throughput and 7x CAT6 video outputs. Alternatively, the HDMI output can also be treated as an extender to connect to another HDMI splitter or cascade with other unit in multiple layers. This unit allows the user to transmit HDMI signal via CAT6 without compression over long distances (up to 45M). The HDMI to CAT6 splitter also incorporates functions like EDID, System Reset, Deep colour and IR send and return. Requires DUAL CAT6 to HDMI receivers; CH-1106RXN sold separate.HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Deep colour video up to 12 bit, 1080p@60Hz. Allows users to link up to four or eight displays. HDCP keysets allows each output to work independently connected to a HDMI display. Supports both DVI source/display by using HDMI to/from DVI adaptor cable. LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio. Supports PC and HDTV resolutions from VGA to SXGA and 480i to 1080p. Selects EDID from TV mode or STD modeIR remote control extender IR receiver and transmitter includedCEC Bypass. Includes IR blaster send & recieve units. This product is for use with CH106, CH1106, CLUX22HC, CLUX-4/8H1CAT, etc. |
| Description | TX Splitter - 3x Twin Cat-6 Output with HDMI loop through |
| Max. | 45M/8Bit or 15M/12Bit |
| Input | 1x HDMI |
| Output | 3x Dual CAT6, 1x HDMI (loop-out) |
| IR | Yes |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Compliance | HDMI V1.3 / DVI 1.0 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| HDCP | Yes |
| PoE | - |
| Ethernet | - |
| HD Audio | Yes |
| 4K | - |
| RS-232 | - |
| Max Res. | 1080p |
| HDMI Input | 1 |
| HDMI Output | 1 |
| Page | 28 |
| Cat6/6ex2 Output | 3 |
| Extension Cables | 3 Dual |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| Power | PoC |
| Device Type | TX Splitter |
| Interface | TX Splitter 3 |
| SKU No | WES_CLUX-1H4CAT_2 |
