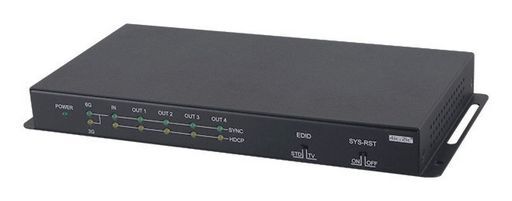

HDMI SPLITTER 4K60 18GBPS WITH AUTOMATIC DOWNSCALING - CYPRESS
WITH AUTOMATIC DOWN-SCALING IF A DISPLAY CANNOT SUPPORT
SKU code: WES_CPLUS-V4T_1
This is a HDMI SPLITTER 4K60 18GBPS WITH AUTOMATIC DOWNSCALING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI SPLITTER 4K60 18GBPS WITH AUTOMATIC DOWNSCALING - CYPRESS |
| Notes | WITH AUTOMATIC DOWN-SCALING IF A DISPLAY CANNOT SUPPORT THE SOURCE'S 4K RESOLUTION/TIMING HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the HDMI outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply colour space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatibleHDCP 2.2 and HDCP 1.x compliant 2x HDMI outputs in CPLUS-V2T or 4x HDMI outputs in CPLUS-V4T, 1x HDMI inputSupports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signalsSupports current 10-bit and 12-bit HDR (High Dynamic Range) formatsSupports pass-through of LPCM 7.1, Bitstream and advanced HDBitstream audio formatsAutomatic 4K to 1080p down-scaling and colour space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDIDIndependent HDCP management engine for each output ensures stable HDCP performanceSimple to use EDID management optionsSupport for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displaysControllable via front-panel switches |
| Description | 4K UHD HDR 1×4 HDMI Splitter with Automatic Downscaling |
| Size | 232x108x25mm |
| Input | 1x HDMI |
| Output | 4x HDMI |
| Cable Length | 5M (4K) |
| Compliance | HDMI 2.0a UHD+ 18Gbps |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Max Res. | 4K 60Hz (4:4:4) |
| Chassis. | Metal |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V4T_1 |
