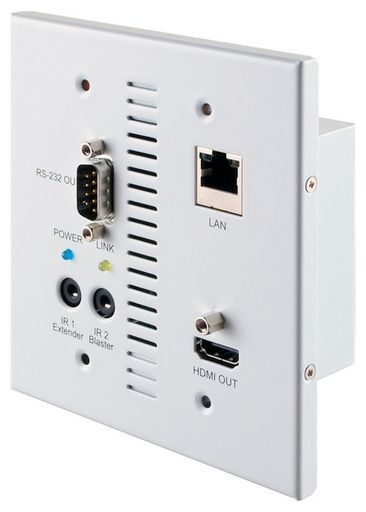

HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS
UP TO 100M WITH IR / RS-232 / LAN / 24V PoC SUPPORT
SKU code: WES_CH-507RXWPUS_1
This is a HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT WALL-PLATE EXTENDER 4K30 - CYPRESS |
| Notes | UP TO 100M WITH IR / RS-232 / LAN / 24V PoC SUPPORT The CH-507TXWPUS / CH-507RXWPUS is an HDMI over Single CAT5e/6/7 wall-plate transmitter and receiver set that can transmit and receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 metres (1080p) with PoC, IR, RS232 and LAN of a data transmission rate of 100Mbps. A true HDBaseT 5Play™ solution to make our home or office more efficient and easy with control. HDMI with 3D, 4K2K supported, and HDCP compliant.HDMI with 3D, 4K2K supported, HDCP & DVI compliantSupports HDCP repeater and CEC bypassSimultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ftHDBaseT 5Play™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Cable and RS-232/IR controlsUncompressed video support up to 3840×2160@30 Hz or 4096×2160@24 HzHigh definition audio support up to LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioUS 2 gang wall-plate design |
| Description | HDBaseT HDMI Receiver wall plate over CAT5e/6/7 |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| IR | Yes |
| Cable Length | 100M (@1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-507TXWPUS |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| Manufacturer | Cypress |
| SKU No | WES_CH-507RXWPUS_1 |
