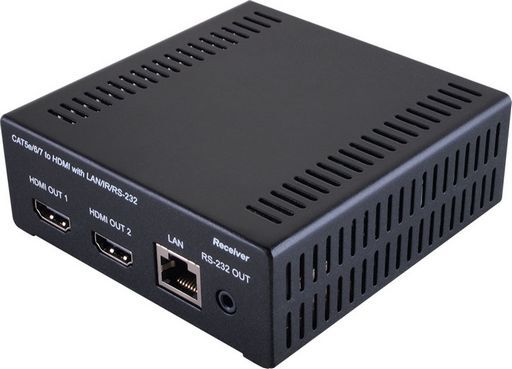

HDMI OVER HDBaseT RECEIVER 4K30 WITH LAN / RS-232 / 24V PoE - CYPRESS
UP TO 100M WITH HDMI SPLITTER TO TWO DUPLICATE OUTPUTS
SKU code: WES_CHDBR-2HE_1
This is a HDMI OVER HDBaseT RECEIVER 4K30 WITH LAN / RS-232 / 24V PoE - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT RECEIVER 4K30 WITH LAN / RS-232 / 24V PoE - CYPRESS |
| Notes | UP TO 100M WITH HDMI SPLITTER TO TWO DUPLICATE OUTPUTS The HDMI over CAT5e/6/7 Receiver is designed to receive an HDBaseT™ signal from a compatible transmitter or matrix unit. It features full 5Play™ convergence allowing the transmission of video, Audio, Control (IR/RS-232), Power over Ethernet (PoE) and LAN serving over a single CAT5e/6/7 cable up to 100m (1080p). This unit features a simultaneous dual HDMI output allowing the connection of a second display in the same zone. Additionally, it has bi-directional Power over Ethernet (PoE) functionality that allows for greater flexibility in installations and LAN serving function that allows any connected device to share network/internet connectivity.HDMI with 3D, 4K2K support, HDCP and DVI compliantSimultaneous transmission over a single CAT5e/6/7 cable up to 100m/328ftHDMI outputs play identical video signal simultaneouslySupports video data rate at 300 MHz/10.2 GbpsSupports PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2KHD audio support up to LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioSupports audio sampling rates from 32 kHz to 192 kHzSupports Ethernet transmission rate up to 100 MbpsProvides 24V DC power to or from a compatible PoC Transmitter through the cableSupports bi-directional Infrared and RS-232 controlSupports USB service port |
| Description | HDBaseT Dual HDMI Output Receiver with Bidirectional PoE |
| Input | 1x CAT5e/6/7 |
| Output | 2x HDMI |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Type | Receiver |
| Compatible with | CH-1109TXC, CH-501TX, CH-506TX, CH-507TX |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| SKU No | WES_CHDBR-2HE_1 |
