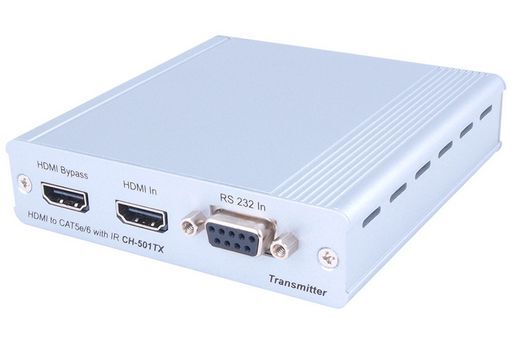

HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232/ HDMI BYPASS - CYPRESS
UP TO 100M WITH LAN / HDMI BYPASS IN TRANSMITTER
SKU code: WES_CH-501TX_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232/ HDMI BYPASS - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232/ HDMI BYPASS - CYPRESS |
| Notes | UP TO 100M WITH LAN / HDMI BYPASS IN TRANSMITTER The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed HDMI video and audio can be transmitted over a single CAT 5e/CAT6 with the added benefit of control through the built-in RS-232 and IR ports up to 100m (1080p). It also features a HDMI bypass function that allows for local testing of the HDMI source. Includes 5V power packs.Supports HDMI with 3D, 4k x 2k support, HDCP and DVI CompliantSupports CEC bypass functionSimultaneous transmission of uncompressed data up to 100 Metres for CAT5e or CAT6 cable Uncompressed video 1080p, 60 Hz, 36-bitAudio support up to 7.1CH & Dolby® TrueHD, DTS-HDVarious controls over HDMI, CEC, RS232 and IR3Play™ convergence (Audio/Video/Control) |
| Description | HDBaseT HDMI Transmitter over CAT5/6/7 with RS-232 |
| Type | Transmitter |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| IR Extension | Yes |
| RS-232 | Yes |
| RS232 Extension | Yes |
| PoE | No |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| HDCP | Yes |
| 3D | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-501RX |
| EDID | - |
| Max. | 100M |
| Cable Length | 100M (@ 1080p) |
| Page | 27 |
| Manufacturer | Cypress |
| Compliance | HDMI V1.4 / DVI |
| Interface | Transmitter |
| Device Type | Transmitter |
| IR | Yes |
| CEC | Yes |
| 4K | Yes |
| SKU No | WES_CH-501TX_1 |
