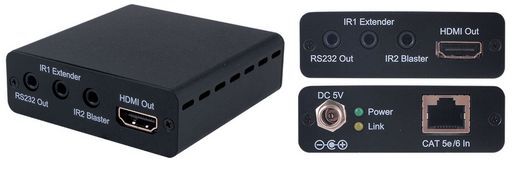

HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232 - CYPRESS
UP TO 100M EXTENSION FOR 1080P
SKU code: WES_CH-506RX_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH IR / RS-232 - CYPRESS |
| Notes | UP TO 100M EXTENSION FOR 1080P The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and IR ports.HDMI with 3D, 4k×2k supports, HDCP and DVI compliant Supports HDCP repeater and CEC function Simultaneous transmission of uncompressed data over a single CAT6/CAT5e cable up to 100 m/328 ft Uncompressed video 1080p, 60 Hz, 36-bit Audio support up to LPCM 7.1CH, Dolby® TrueHD and DTS-HD Master Audio HDBaseT technology support HDMI transmission and IR and RS-232 controlsInstallation friendly HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI Receiver over CAT5/6/7 with RS-232 |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | No |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506TX |
| EDID | - |
| Cable Length | 100M (@ 1080p) |
| Manufacturer | Cypress |
| Compliance | HDMI 1.4 |
| Interface | Receiver |
| IR | Yes |
| CEC | YES |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-506RX_1 |
