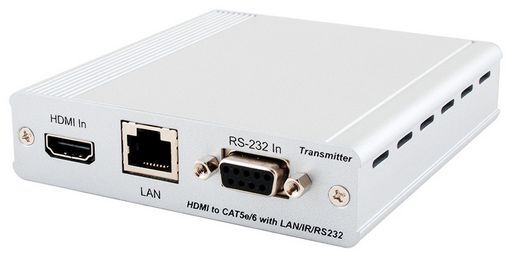

HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS
WITH IR / RS-232 / 24V POC / LAN
SKU code: WES_CH-507TXBD_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS |
| Notes | WITH IR / RS-232 / 24V POC / LAN The HDMI with RS-232 over Single CAT5e/6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100m (1080p) with PoC feature and the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN connection. HDMI with 3D, 4K2K support, HDCP & DVI compliant, supports CEC bypass.HDMI with 3D, 4K2K support, HDCP & DVI CompliantSupports CEC bypassSimultaneous transmission of uncompressed data over a single 100 m/328 ft CAT5e/6 cableUncompressed video 1080p, 60 Hz, 36-bitAudio support up to 7.1CH, Dolby® TrueHD, DTS-HD5Play™ convergence: HDMI, LAN, Bidirectional PoC & Control (IR & RS-232) |
| Description | HDBaseT HDMI Transmitter over CAT5/6/7 with bidirectional PoE |
| Type | Transmitter |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-507RXBD |
| Extender Cable | CAT5e/6/7 |
| Manufacturer | Cypress |
| SKU No | WES_CH-507TXBD_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_CH-507TXBD_1 |
| Brand | Cypress |
