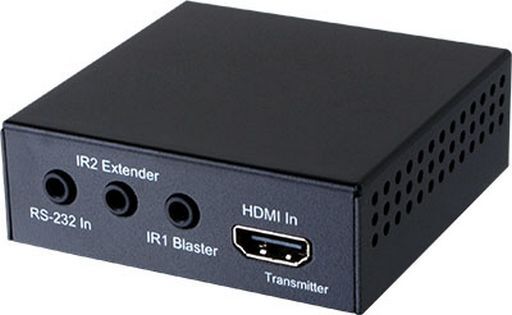

HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS
UP TO 60M WITH IR / RS-232 / 24V PoC BIDIRECTIONAL
SKU code: WES_CH-506TXPLBD_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS |
| Notes | UP TO 60M WITH IR / RS-232 / 24V PoC BIDIRECTIONAL The HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC. The Transmitter or Receiver set can be used as the power source. Uncompressed video and audio can be transmitted up to 60 metres (1080p) with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable. Supports HDMI 3D and 4K x 2K features. HDMI input/output up to 15 metres with 8-bit resolution or 10 metres with 12-bit resolution.Compatible with HDCP and DVISupports HDMI 3D and 4K x 2K featuresSupports HDBaseT-Lite TechnologySupports HD resolutions up to 1080p@60Hz/36-bitSupports distance up to 70 metres through CAT5e/6/7 cableSupports bidirectional IR and PoC HDMI input/output up to 15 metres with 8bits resolution or 10 metres with 12bits resolutionRS-232 with baud rate up to 115200/secSupports wide range of IR frequency from 30~50kHzSupports HDCP repeater and CEC bypassAudio supports LPCM 7.1CH, Dolby® TrueHD, Dolby® digital Plus and DTS-HD Master Audio transmission HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT HDMI Transmitter with Bidirectional PoE |
| Type | Transmitter |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 60M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506RXPLBD |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| Manufacturer | Cypress |
| SKU No | WES_CH-506TXPLBD_1 |
