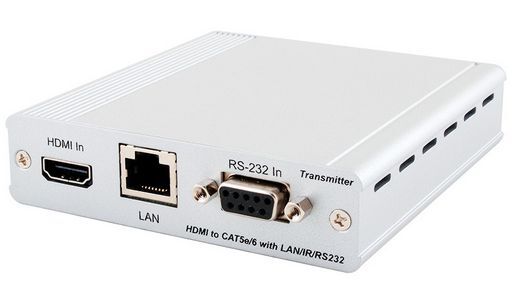

HDMI OVER HDBaseT EXTENDER 4K30 PoC - CYPRESS
UP TO 100M WITH IR / RS232 / ETHERNET / PoC
SKU code: WES_CH-507TX_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 PoC - CYPRESS |
| Notes | UP TO 100M WITH IR / RS232 / ETHERNET / PoC The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100m (1080p) with PoC feature and the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN connection.HDMI with 3D, 4k×2k support, HDCP & DVI CompliantSupports CEC bypassSimultaneous transmission of uncompressed data over a single 100 m/328 ft CAT6/CAT5e cableUncompressed video 1080p, 60 Hz, 36-bitAudio support up to 7.1CH & Dolby® TrueHD, DTS-HD5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232) |
| Description | HDBaseT HDMI Transmitter over CAT5/6/7 with PoE |
| Type | Transmitter |
| Input | 1x HDMI |
| Output | 1x CAT5e/6/7 |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | Yes |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-507RX |
| Cable Length | 100M (@ 1080p) |
| Manufacturer | Cypress |
| IR | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-507TX_1 |
