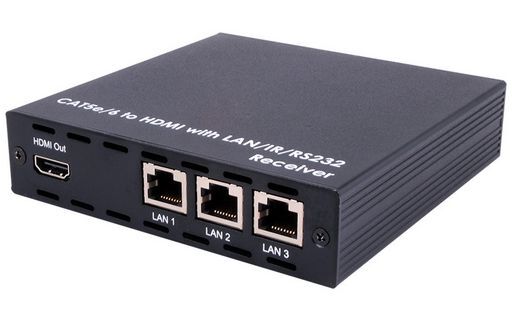

HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS
WITH 3x LAN / HDMI BYPASS IN TRANSMITTER / PoE SUPPORT
SKU code: WES_CH-1109RXC_1
This is a HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER HDBaseT EXTENDER 4K30 - CYPRESS |
| Notes | WITH 3x LAN / HDMI BYPASS IN TRANSMITTER / PoE SUPPORT The device that can make your home or office more efficient, the CH-1109TXC & RXC is capable of sending HDMI (uncompressed audio/video), Ethernet connections and control ports (through the built-in RS-232 and IR ports) over a single CAT5e/CAT6 up to a distance of 100m. Even more, it is adaptor free at the receiver end. Further, with the HDMI bypass is designed to allow instant display at the control point. So, if you wish to make your home or office more efficient, get the HDMI over Single CAT5e/CAT6 with LAN/PoE & IR Extender and prepare to be amazed.Supports HDMI 3D, 4Kx2K resolution and CEC bypass functionsSimultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Colour) over a single CAT5e/CAT6 type cable for up to 100 metresConnect and share up to 6 Ethernet connections at speeds up to 100 Mbps5Play™ convergenceSingle power supply powers both unitsSupports PoE (Power over Ethernet) |
| Description | HDBaseT HDMI Receiver over CAT5/6/7 with 6 LAN ports |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | Yes |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-1109TXC |
| Cable Length | 100M (@ 1080p) |
| Manufacturer | Cypress |
| IR | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CH-1109RXC_1 |
